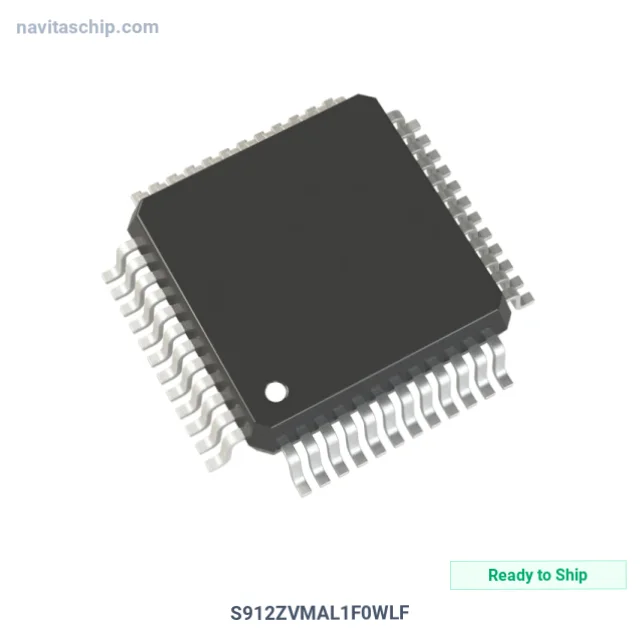

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | S912ZVMAL1F0WLF |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | N96109020 |
| Description | S912ZVMAL1F0WLF |
| Spec | 48-LQFP |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | NXP USA Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Core Processor | S12Z |
| Core Size | 16-Bit |
| Speed | 50MHz |
| Connectivity | LINbus, SCI, SPI, UART/USART |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 31 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 128 x 8 |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3.5V ~ 20V |
| Data Converters | A/D 7x12b SAR |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 150°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 48-LQFP (7x7) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. S912ZVMAL1F0WLF Datasheet |
| Product Image | View Large Image |
Environmental Compliance
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
Product Description
The S912ZVMAL1F0WLF is a Microcontroller (MCU) manufactured by NXP USA Inc. (NXP). S912zvmal1f0wlf, housed in a compact 48-LQFP (7x7) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 150°C (TA)
- Mounting: Surface Mount
- Package: 48-LQFP
- Device Package: 48-LQFP (7x7)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
