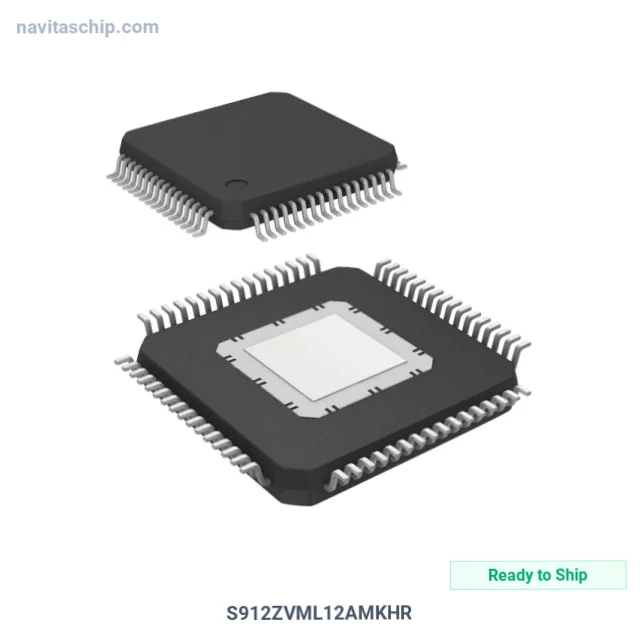

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | S912ZVML12AMKHR |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | N96109756 |
| Description | S12Z CORE, 128K FLASH, LIN, 64LQ |
| Spec | 64-LQFP Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | NXP USA Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Core Processor | S12Z |
| Core Size | 16-Bit |
| Speed | 50MHz |
| Connectivity | CANbus, SCI, SPI |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 31 |
| Program Memory Size | 128KB (128K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 512 x 8 |
| RAM Size | 8K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3.5V ~ 40V |
| Data Converters | A/D 9x12b SAR |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-HLQFP (10x10) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Product Image | View Large Image |
Environmental Compliance
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
Product Description
The S912ZVML12AMKHR is a Microcontroller (MCU) manufactured by NXP USA Inc. (NXP). S12z Core, housed in a compact 64-HLQFP (10x10) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 64-LQFP Exposed Pad
- Device Package: 64-HLQFP (10x10)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
