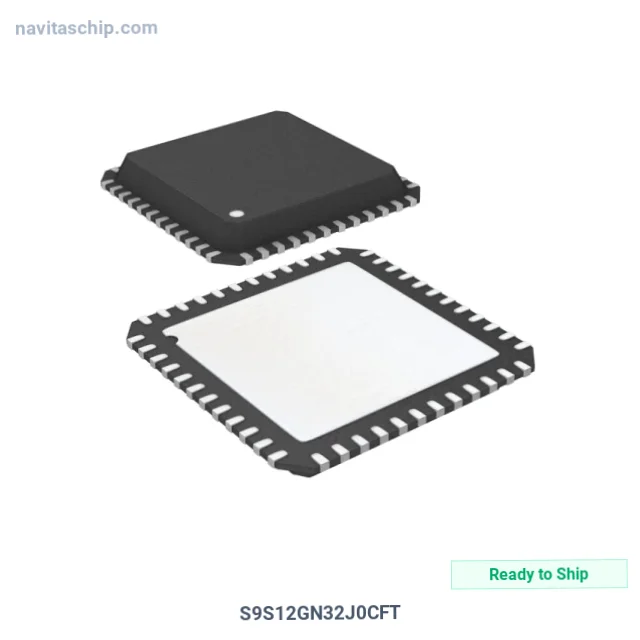

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | S9S12GN32J0CFT |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-18712361 |
| Description | IC MCU 16BIT 32KB FLASH 48TFQFN |
| Spec | 48-TFQFN Exposed Pad |
| Package | Tray |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | NXP USA Inc. |
| Package | Tray |
| Product Status | Active |
| Core Processor | S12 |
| Core Size | 16-Bit |
| Speed | 25MHz |
| Connectivity | IrDA, LINbus, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 40 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3.13V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 48-QFN-EP (7x7) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The S9S12GN32J0CFT is a Microcontroller (MCU) manufactured by NXP USA Inc. (NXP). Integrated Circuit Microcontroller 16bit 32kb Flash Memory 48tfqfn, housed in a compact 48-QFN-EP (7x7) package.
Don't let microcontroller shortage slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 48-TFQFN Exposed Pad
- Device Package: 48-QFN-EP (7x7)
- RoHS Compliant
Applications
Ideal solution for:
- IoT devices
- professional equipment
- industrial control
Why Choose NavitasChip for S9S12GN32J0CFT?
NavitasChip offers cost-effective alternative to authorized distributors for the S9S12GN32J0CFT and thousands of other electronic components.
- Availability: Available Now
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
S9S12GN32J0CFT sourced and shipped via our Asia-Pacific distribution network.
S9S12GN32J0CFT - Contact our sales team.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
