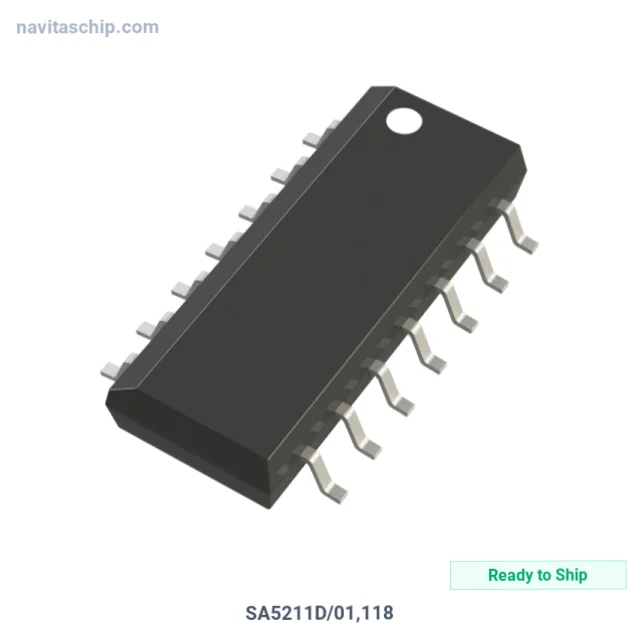

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | SA5211D/01,118 |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-1301036 |
| Description | IC TRANSIMPEDANCE 1 CIRCUIT 14SO |
| Spec | 14-SOIC (0.154", 3.90mm Width) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | NXP USA Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Amplifier Type | Transimpedance |
| Number of Circuits | 1 |
| Output Type | Differential |
| -3db Bandwidth | 180 MHz |
| Current - Supply | 26mA |
| Current - Output / Channel | 4 mA |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SO |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. SA5211D/01,118 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The SA5211D/01,118 is an Operational Amplifier (Op Amp) manufactured by NXP USA Inc. (NXP). Integrated Circuit Transimpedance 1 Circuit 14so, housed in a compact 14-SO package.
Key Technical Specifications
- Output Type: Differential
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 14-SOIC (0.154", 3.90mm Width)
- Device Package: 14-SO
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
