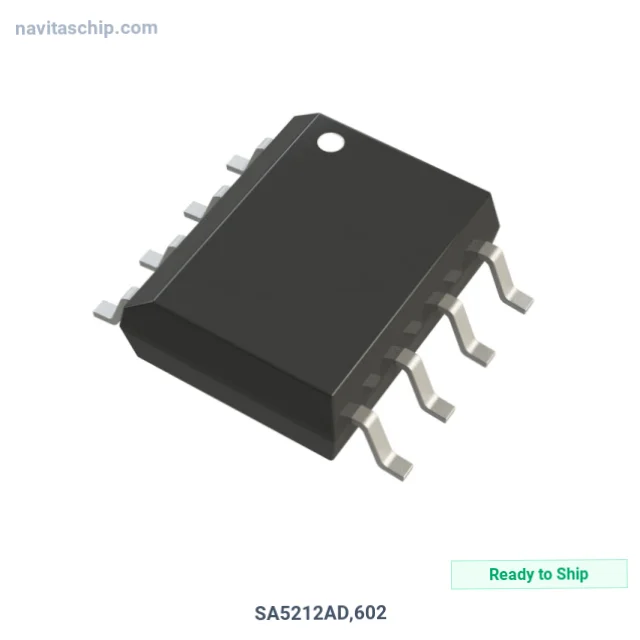

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | SA5212AD,602 |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-740390 |
| Description | IC TRANSIMPEDANCE 1 CIRCUIT 8SO |
| Spec | 8-SOIC (0.154", 3.90mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | NXP USA Inc. |
| Package | Tube |
| Product Status | Obsolete |
| Amplifier Type | Transimpedance |
| Number of Circuits | 1 |
| Output Type | Differential |
| -3db Bandwidth | 140 MHz |
| Current - Supply | 26mA |
| Current - Output / Channel | 4 mA |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SO |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. SA5212AD,602 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The SA5212AD,602 is an Operational Amplifier (Op Amp) manufactured by NXP USA Inc. (NXP). Integrated Circuit Transimpedance 1 Circuit 8so, housed in a compact 8-SO package.
Key Technical Specifications
- Output Type: Differential
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 8-SOIC (0.154", 3.90mm Width)
- Device Package: 8-SO
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
