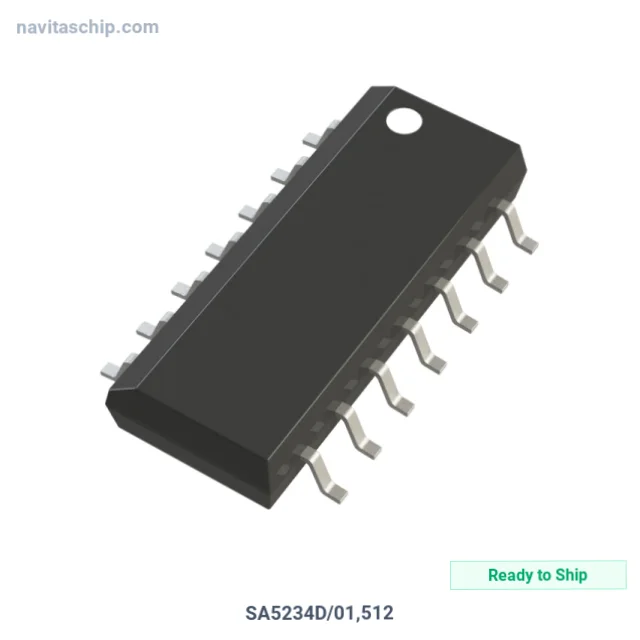

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | SA5234D/01,512 |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-1144535 |
| Description | IC OPAMP GP 4 CIRCUIT 14SO |
| Spec | 14-SOIC (0.154", 3.90mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | NXP USA Inc. |
| Package | Tube |
| Product Status | Obsolete |
| Amplifier Type | Standard (General Purpose) |
| Number of Circuits | 4 |
| Output Type | Rail-to-Rail |
| Slew Rate | 0.8V/µs |
| -3db Bandwidth | 2.5 MHz |
| Current - Input Bias | 25 nA |
| Voltage - Input Offset | 200 µV |
| Current - Supply | 2.8mA (x4 Channels) |
| Current - Output / Channel | 12 mA |
| Voltage - Supply Span (Min) | 2 V |
| Voltage - Supply Span (Max) | 5.5 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SO |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. SA5234D/01,512 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The SA5234D/01,512 is an Operational Amplifier (Op Amp) manufactured by NXP USA Inc. (NXP). Integrated Circuit Operational Amplifier General Purpose 4 Circuit 14so, housed in a compact 14-SO package.
Key Technical Specifications
- Output Type: Rail-to-Rail
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 14-SOIC (0.154", 3.90mm Width)
- Device Package: 14-SO
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
