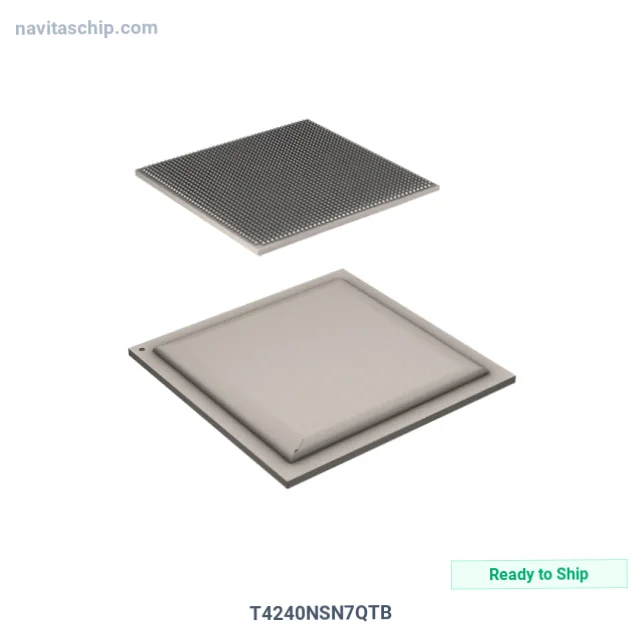

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | T4240NSN7QTB |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-5214599 |
| Description | IC MPU QORIQ T4 1.8GHZ 1932BGA |
| Spec | 1932-BBGA, FCBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microprocessors |
| Manufacturer | NXP USA Inc. |
| Package | Tray |
| Product Status | Active |
| Core Processor | PowerPC e6500 |
| Number of Cores/Bus Width | 12 Core, 64-Bit |
| Speed | 1.8GHz |
| RAM Controllers | DDR3, DDR3L |
| Graphics Acceleration | No |
| Ethernet | 1Gbps (16), 10Gbps (4) |
| SATA | SATA 3Gbps (2) |
| USB | USB 2.0 + PHY (2) |
| Operating Temperature | 0°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1932-FCPBGA (45x45) |
| Additional Interfaces | I2C, MMC/SD, PCIe, RapidIO, SPI, UART |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. T4240NSN7QTB Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The T4240NSN7QTB is an Embedded Processor manufactured by NXP USA Inc. (NXP). Integrated Circuit Microprocessor Qoriq T4 operating at 1.8GHz in 1932-Pin BGA Package, housed in a compact 1932-FCPBGA (45x45) package.
Key Technical Specifications
- Operating Temperature: 0°C ~ 105°C (TA)
- Mounting: Surface Mount
- Package: 1932-BBGA, FCBGA
- Device Package: 1932-FCPBGA (45x45)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
