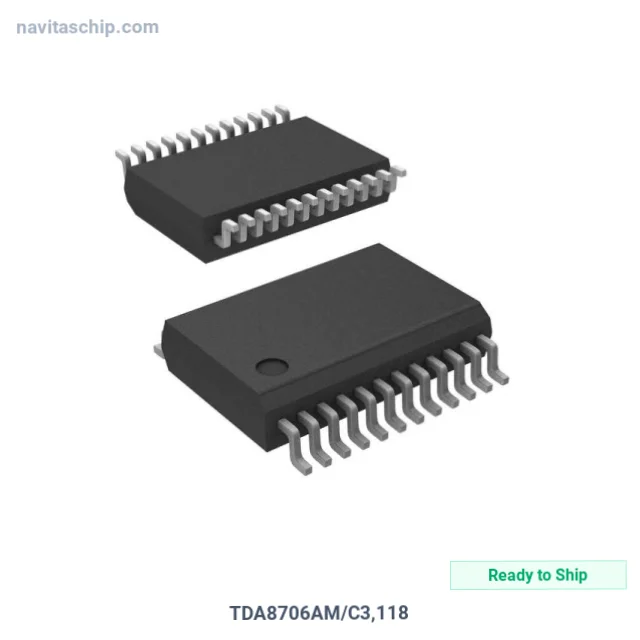

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TDA8706AM/C3,118 |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-2229384 |
| Description | IC ADC/VIDEO RGB 6BIT 40M 24SSOP |
| Spec | 24-SSOP (0.209", 5.30mm Width) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | ADCs/DACs - Special Purpose |
| Manufacturer | NXP USA Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Type | ADC, Video RGB |
| Number of Channels | 3 |
| Resolution (Bits) | 6 b |
| Sampling Rate (Per Second) | 40M |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 2.7V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-SSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. TDA8706AM/C3,118 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TDA8706AM/C3,118 is an Audio Codec and Special-Purpose Data Converter IC manufactured by NXP USA Inc. (NXP). Integrated Circuit Analog-To-Digital Converter/video Rgb 6bit 40m in 24-Pin SSOP Package, housed in a compact 24-SSOP package, with 2.7V ~ 3.6V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.7V ~ 3.6V
- Channels: 3
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 24-SSOP (0.209", 5.30mm Width)
- Device Package: 24-SSOP
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
