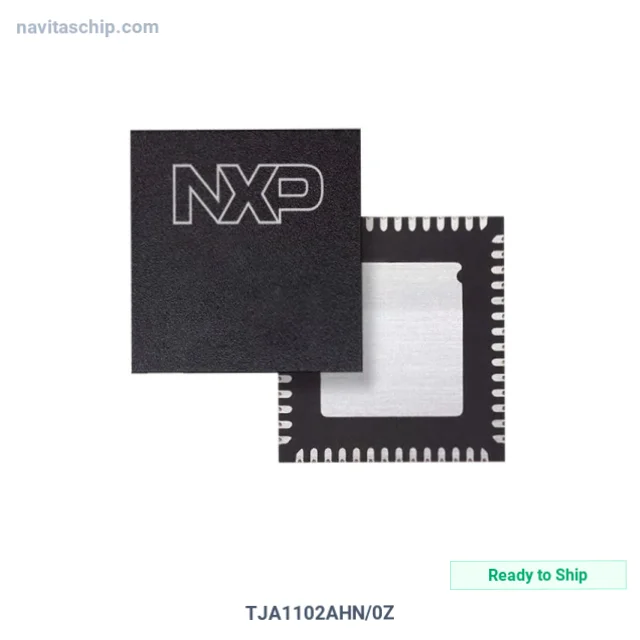

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TJA1102AHN/0Z |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-14681556 |
| Description | IC TRANSCEIVER FULL 2/2 56HVQFN |
| Spec | 56-VFQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | NXP USA Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Transceiver |
| Protocol | Ethernet |
| Number of Drivers/Receivers | 2/2 |
| Duplex | Full |
| Data Rate | 100Mbps |
| Voltage - Supply | 1.8V, 3.3V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 56-HVQFN (8x8) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. TJA1102AHN/0Z Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TJA1102AHN/0Z is an Interface Driver Receiver Transceiver IC manufactured by NXP USA Inc. (NXP). Integrated Circuit Transceiver Full 2/2 56hvqfn, housed in a compact 56-HVQFN (8x8) package, with 1.8V, 3.3V supply voltage.
Key Technical Specifications
- Supply Voltage: 1.8V, 3.3V
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 56-VFQFN Exposed Pad
- Device Package: 56-HVQFN (8x8)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
