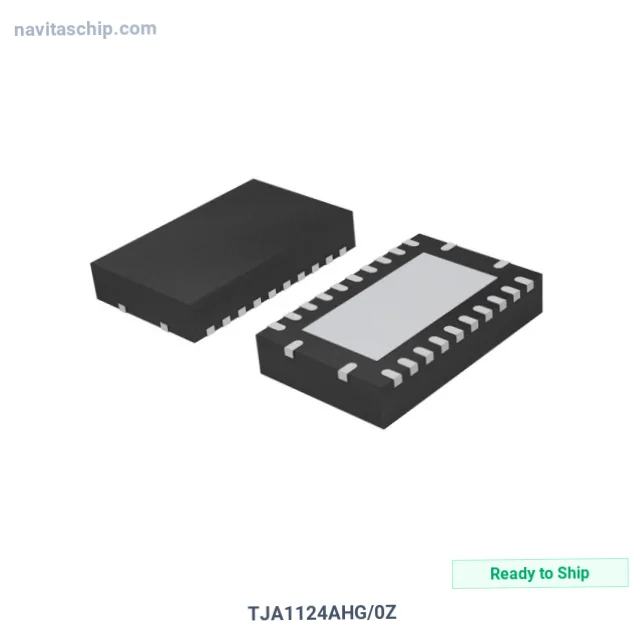

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TJA1124AHG/0Z |
| Manufacturer | NXP USA Inc. |
| NavitasChip Part Number | NAVI-9806105 |
| Description | IC TRANSCEIVER FULL 4/4 24DHVQFN |
| Spec | 24-VFQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Drivers, Receivers, Transceivers |
| Manufacturer | NXP USA Inc. |
| Package | Tape & Reel (TR) |
| Product Status | Last Time Buy |
| Type | Transceiver |
| Protocol | LIN |
| Number of Drivers/Receivers | 4/4 |
| Duplex | Full |
| Data Rate | 20kBd |
| Voltage - Supply | 5V ~ 28V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-DHVQFN (5.5x3.5) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | NXP USA Inc. TJA1124AHG/0Z Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TJA1124AHG/0Z is an Interface Driver Receiver Transceiver IC manufactured by NXP USA Inc. (NXP). Integrated Circuit Transceiver Full 4/4 24dhvqfn, housed in a compact 24-DHVQFN (5.5x3.5) package, with 5V ~ 28V supply voltage.
Don't let discontinued CAN and LIN transceivers requiring drop-in replacements slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Supply Voltage: 5V ~ 28V
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting: Surface Mount
- Package: 24-VFQFN Exposed Pad
- Device Package: 24-DHVQFN (5.5x3.5)
- RoHS Compliant
Applications
Perfect for:
- embedded systems
- 5G CPE and small cell base station interfaces
- building automation BACnet and KNX network communication
- CAN and LIN transceivers for distributed control systems
Why Choose NavitasChip for TJA1124AHG/0Z?
NavitasChip offers obsolete part procurement when authorized distributors discontinue support for the TJA1124AHG/0Z and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Ships from Hong Kong, Singapore, or Shenzhen based on destination requirements.
TJA1124AHG/0Z - Request a quote today.
