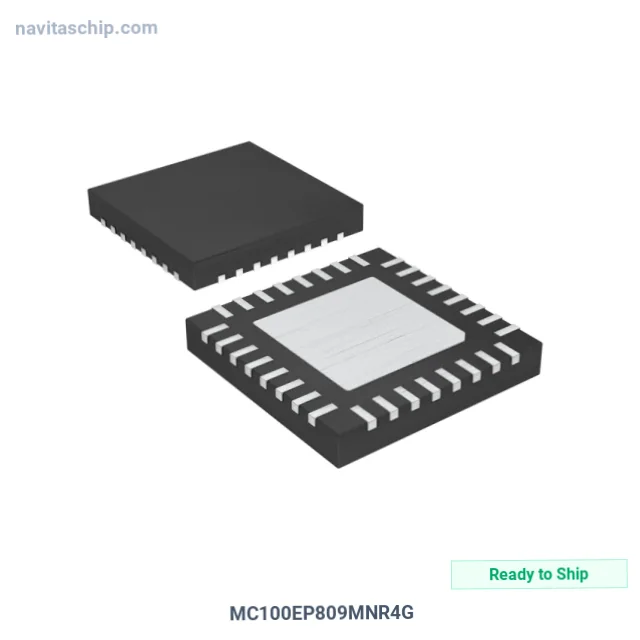

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | onsemi |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Type | Fanout Buffer (Distribution), Multiplexer |
| Number of Circuits | 2 |
| Ratio - Input | 1:9 |
| Differential - Input | Yes/Yes |
| Input | HSTL, LVDS, LVPECL |
| Output | HSTL |
| Frequency - Max | 750 MHz |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | 0°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-QFN (5x5) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | onsemi MC100EP809MNR4G Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MC100EP809MNR4G is a Clock Buffer and Driver IC manufactured by onsemi. Integrated Circuit Clock Buffer 1:9 operating at 750MHz in 32-Pin QFN Package, housed in a compact 32-QFN (5x5) package, with 3V ~ 3.6V supply voltage.
