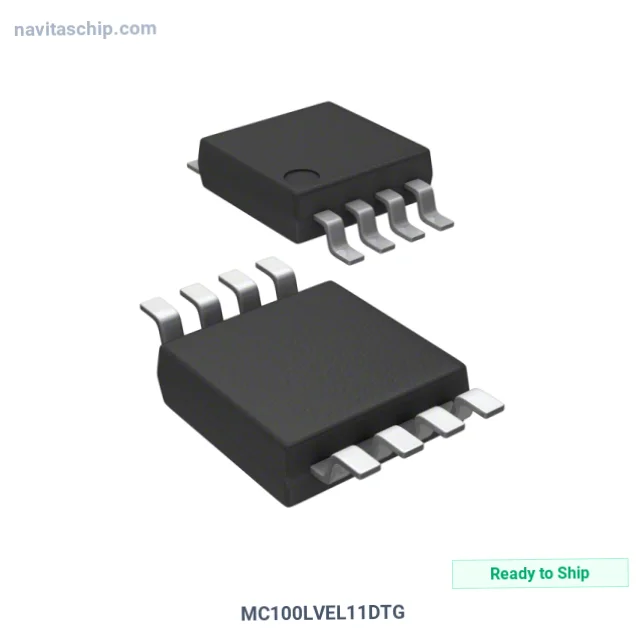

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | onsemi |
| Package | Bulk |
| Product Status | Last Time Buy |
| Type | Fanout Buffer (Distribution) |
| Number of Circuits | 1 |
| Ratio - Input | 1:2 |
| Differential - Input | Yes/Yes |
| Input | ECL, PECL |
| Output | ECL, PECL |
| Frequency - Max | 1 GHz |
| Voltage - Supply | 3V ~ 3.8V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-TSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | onsemi MC100LVEL11DTG Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MC100LVEL11DTG is a Clock Buffer and Driver IC manufactured by onsemi. Integrated Circuit Clock Buffer 1:2 operating at 1GHz in 8-Pin TSSOP Package, housed in a compact 8-TSSOP package, with 3V ~ 3.8V supply voltage.
Key Technical Specifications
- Supply Voltage: 3V ~ 3.8V
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Device Package: 8-TSSOP
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
