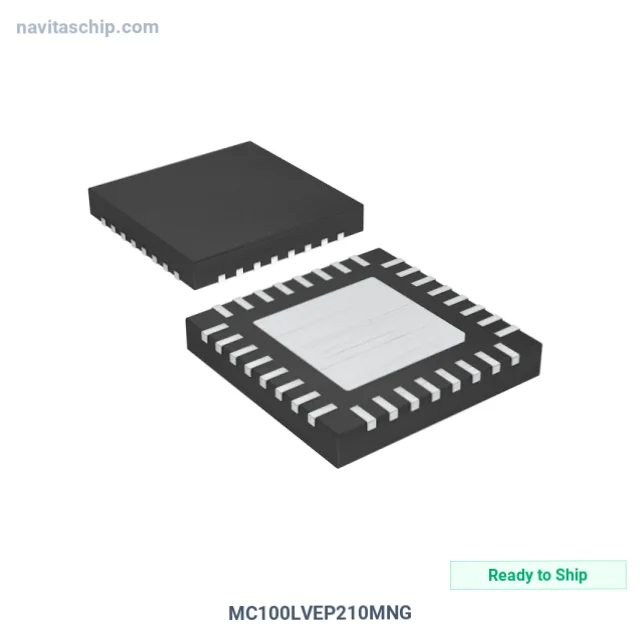

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | onsemi |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tube |
| Product Status | Obsolete |
| Type | Fanout Buffer (Distribution) |
| Number of Circuits | 2 |
| Ratio - Input | 1:5 |
| Differential - Input | Yes/Yes |
| Input | ECL, HSTL, LVDS, PECL |
| Output | ECL, PECL |
| Frequency - Max | 3 GHz |
| Voltage - Supply | 2.375V ~ 3.8V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-QFN (5x5) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | onsemi MC100LVEP210MNG Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The MC100LVEP210MNG is a Clock Buffer and Driver IC manufactured by onsemi. Integrated Circuit Clock Buffer 1:5 operating at 3GHz in 32-Pin QFN Package, housed in a compact 32-QFN (5x5) package, with 2.375V ~ 3.8V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.375V ~ 3.8V
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 32-VFQFN Exposed Pad
- Device Package: 32-QFN (5x5)
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
