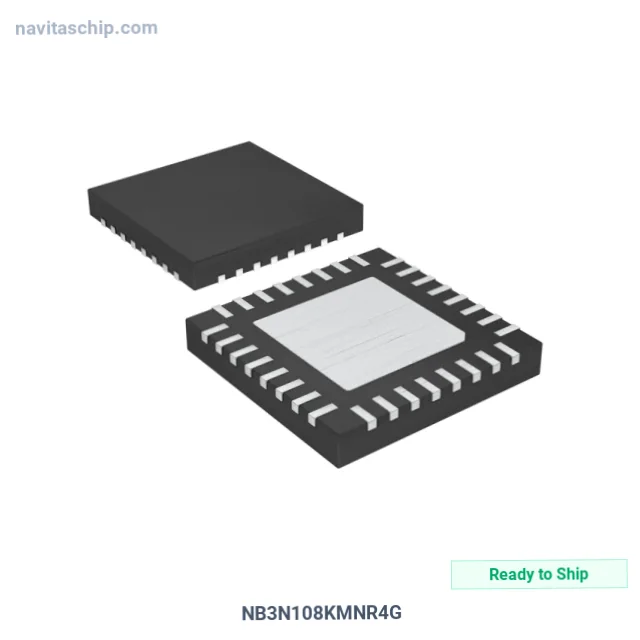

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | onsemi |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Type | Fanout Buffer (Distribution), Data |
| Number of Circuits | 1 |
| Ratio - Input | 1:8 |
| Differential - Input | Yes/Yes |
| Input | HCSL, LVCMOS, LVDS, LVPECL, LVTTL |
| Output | HCSL, LVDS |
| Frequency - Max | 400 MHz |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-QFN (5x5) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | onsemi NB3N108KMNR4G Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The NB3N108KMNR4G is a Clock Buffer and Driver IC manufactured by onsemi. Integrated Circuit Clock Buffer 1:8 operating at 400MHz in 32-Pin QFN Package, housed in a compact 32-QFN (5x5) package, with 3V ~ 3.6V supply voltage.
Key Technical Specifications
- Supply Voltage: 3V ~ 3.6V
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 32-VFQFN Exposed Pad
- Device Package: 32-QFN (5x5)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
