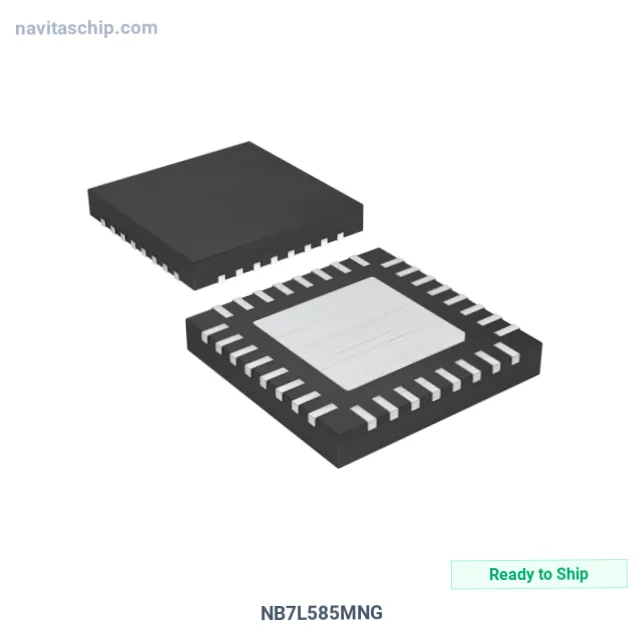

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | onsemi |
| Package | Tube |
| Product Status | Last Time Buy |
| Type | Fanout Buffer (Distribution), Multiplexer, Data |
| Number of Circuits | 1 |
| Ratio - Input | 1:6 |
| Differential - Input | Yes/Yes |
| Input | CML, LVDS, LVPECL |
| Output | LVPECL |
| Frequency - Max | 5 GHz |
| Voltage - Supply | 2.375V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-QFN (5x5) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | onsemi NB7L585MNG Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The NB7L585MNG is a Clock Buffer and Driver IC manufactured by onsemi. Integrated Circuit Clock Buffer 1:6 operating at 5GHz in 32-Pin QFN Package, housed in a compact 32-QFN (5x5) package, with 2.375V ~ 3.6V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.375V ~ 3.6V
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 32-VFQFN Exposed Pad
- Device Package: 32-QFN (5x5)
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
