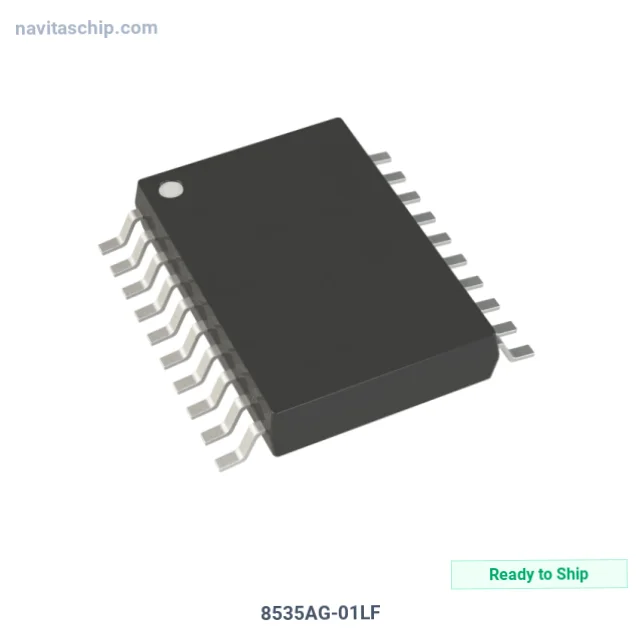

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | 8535AG-01LF |
| Manufacturer | Renesas Electronics Corporation |
| NavitasChip Part Number | NAVI-1915477 |
| Description | IC CLK BUFFER 2:4 266MHZ 20TSSOP |
| Spec | 20-TSSOP (0.173", 4.40mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | Renesas Electronics Corporation |
| Package | Tube |
| Product Status | Active |
| Type | Fanout Buffer (Distribution), Multiplexer |
| Number of Circuits | 1 |
| Ratio - Input | 2:4 |
| Differential - Input | No/Yes |
| Input | LVCMOS, LVTTL |
| Output | LVPECL |
| Frequency - Max | 266 MHz |
| Voltage - Supply | 3.135V ~ 3.465V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-TSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Renesas Electronics Corporation 8535AG-01LF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The 8535AG-01LF is an Integrated Circuit manufactured by Renesas Electronics Corporation (Renesas). Integrated Circuit Clock Buffer 2:4 operating at 266MHz in 20-Pin TSSOP Package, housed in a compact 20-TSSOP package, with 3.135V ~ 3.465V supply voltage. Lead-Free version available.
Facing quarterly cost-down targets? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Supply Voltage: 3.135V ~ 3.465V
- Operating Temperature: 0°C ~ 70°C
- Mounting: Surface Mount
- Package: 20-TSSOP (0.173", 4.40mm Width)
- Device Package: 20-TSSOP
- RoHS Compliant
