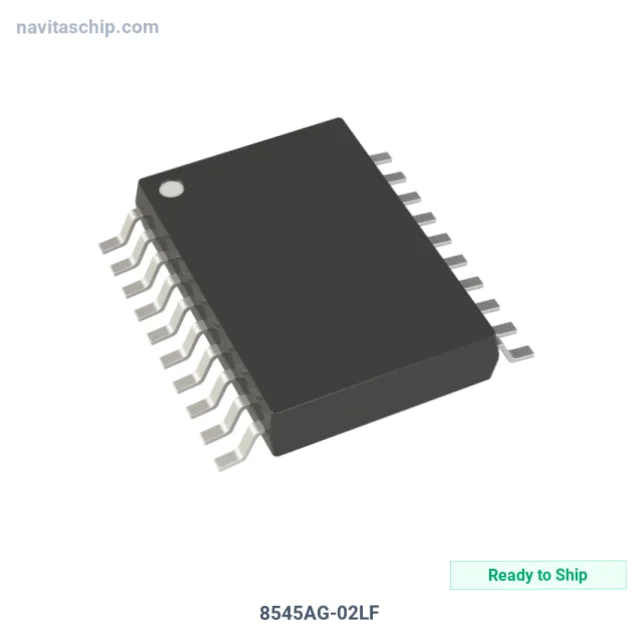

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | 8545AG-02LF |
| Manufacturer | Renesas Electronics Corporation |
| NavitasChip Part Number | NAVI-2006393 |
| Description | IC CLK BUFFER 2:4 350MHZ 20TSSOP |
| Spec | 20-TSSOP (0.173", 4.40mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | Renesas Electronics Corporation |
| Package | Tube |
| Product Status | Obsolete |
| Type | Fanout Buffer (Distribution), Multiplexer |
| Number of Circuits | 1 |
| Ratio - Input | 2:4 |
| Differential - Input | No/Yes |
| Input | LVCMOS, LVTTL |
| Output | LVDS |
| Frequency - Max | 350 MHz |
| Voltage - Supply | 3.135V ~ 3.465V |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-TSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Renesas Electronics Corporation 8545AG-02LF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The 8545AG-02LF is a Clock Buffer and Driver IC manufactured by Renesas Electronics Corporation (Renesas). Integrated Circuit Clock Buffer 2:4 operating at 350MHz in 20-Pin TSSOP Package, housed in a compact 20-TSSOP package, with 3.135V ~ 3.465V supply voltage. Lead-Free version available.
Struggling with long factory lead times exceeding 40-50 weeks on PCIe Gen3 / Gen4 / Gen5 reference clock buffers? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Supply Voltage: 3.135V ~ 3.465V
- Operating Temperature: 0°C ~ 70°C
- Mounting: Surface Mount
- Package: 20-TSSOP (0.173", 4.40mm Width)
- Device Package: 20-TSSOP
Applications
Widely adopted for:
- IoT devices
- professional equipment
- ultra-low additive jitter and femtosecond phase noise performance
Why Choose NavitasChip for 8545AG-02LF?
NavitasChip offers specialized sourcing for end-of-life and obsolete components for the 8545AG-02LF and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Tube or Custom Tube Quantity. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Multiple origin options for 8545AG-02LF to optimize delivery time and customs clearance.
8545AG-02LF - Get instant quote online.
