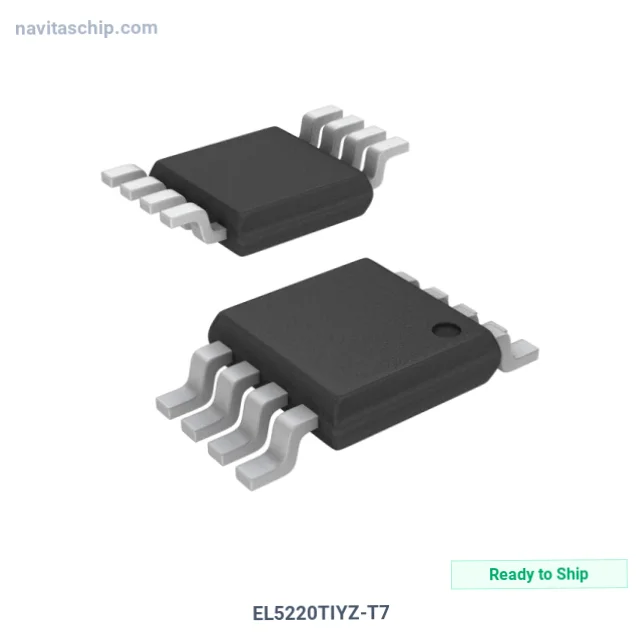

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | EL5220TIYZ-T7 |
| Manufacturer | Renesas Electronics Corporation |
| NavitasChip Part Number | NAVI-2339645 |
| Description | IC VOLTAGE FEEDBACK 2 CIRC 8MSOP |
| Spec | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Instrumentation, OP Amps, Buffer Amps |
| Manufacturer | Renesas Electronics Corporation |
| Tariff Status | Tariff may apply if shipping to the United States |
| Package | Tape & Reel (TR) |
| Product Status | Last Time Buy |
| Amplifier Type | Voltage Feedback |
| Number of Circuits | 2 |
| Output Type | Rail-to-Rail |
| Slew Rate | 12V/µs |
| Gain Bandwidth Product | 8 MHz |
| -3db Bandwidth | 12 MHz |
| Current - Input Bias | 2 nA |
| Voltage - Input Offset | 5 mV |
| Current - Supply | 550µA (x2 Channels) |
| Current - Output / Channel | 65 mA |
| Voltage - Supply Span (Min) | 4.5 V |
| Voltage - Supply Span (Max) | 19 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-MSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Renesas Electronics Corporation EL5220TIYZ-T7 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The EL5220TIYZ-T7 is an Operational Amplifier (Op Amp) manufactured by Renesas Electronics Corporation (Renesas). Integrated Circuit Voltage Feedback 2 Circ in 8-Pin MSOP Package, housed in a compact 8-MSOP package. Originally developed by Intersil.
Key Technical Specifications
- Output Type: Rail-to-Rail
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Device Package: 8-MSOP
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
