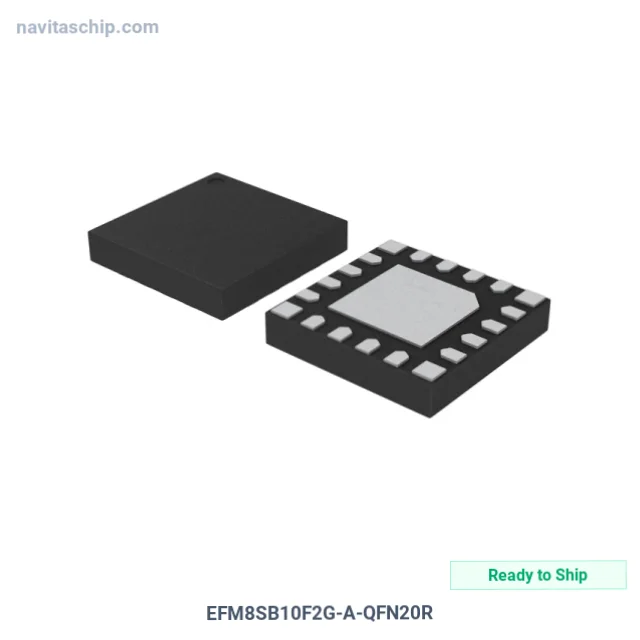

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | EFM8SB10F2G-A-QFN20R |
| Manufacturer | Silicon Labs |
| NavitasChip Part Number | NAVI-5117098 |
| Description | IC MCU 8BIT 2KB FLASH 20QFN |
| Spec | 20-UFQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Silicon Labs |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Core Processor | CIP-51 8051 |
| Core Size | 8-Bit |
| Speed | 25MHz |
| Connectivity | I2C, SMBus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 16 |
| Program Memory Size | 2KB (2K x 8) |
| Program Memory Type | FLASH |
| RAM Size | 256 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 9x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-QFN (3x3) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Silicon Labs EFM8SB10F2G-A-QFN20R Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The EFM8SB10F2G-A-QFN20R is a Microcontroller (MCU) manufactured by Silicon Labs (SiLabs). Integrated Circuit Microcontroller 8bit 2kb Flash Memory in 20-Pin QFN Package, housed in a compact 20-QFN (3x3) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 20-UFQFN Exposed Pad
- Device Package: 20-QFN (3x3)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
