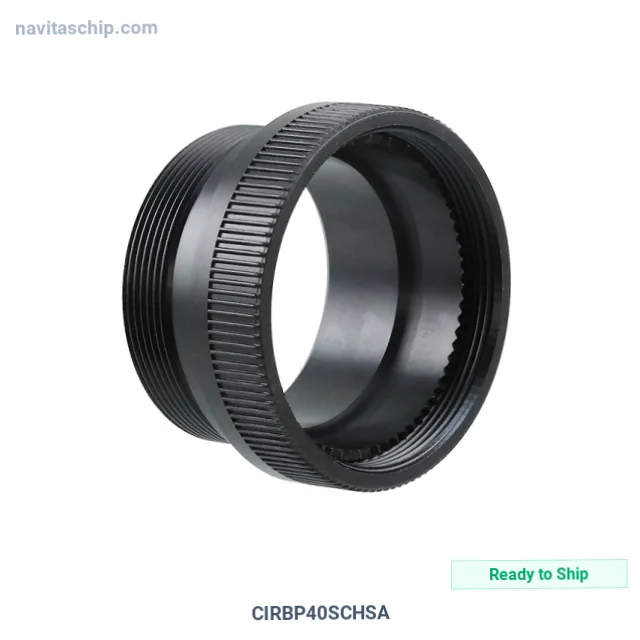

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | CIRBP40SCHSA |
| Manufacturer | TE Connectivity AMP Connectors |
| NavitasChip Part Number | NAVI-6568554 |
| Description | CONN BACKSH ADPT SZ40 2 5/16-16 |
| Spec | - |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Backshells and Cable Clamps |
| Manufacturer | TE Connectivity AMP Connectors |
| Package | Bulk |
| Product Status | Obsolete |
| Type | Backshell, Heat Shrink Adapter |
| Diameter - Outside | 2.638" (67.00mm) |
| Shell Size - Insert | 40 |
| Thread Size | 2 5/16-16 UN |
| Cable Exit | 180° |
| Material | Aluminum Alloy |
| Plating | Zinc Cobalt |
| Shielding | Unshielded |
| Color | Black, Gray |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | TE Connectivity AMP Connectors CIRBP40SCHSA Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The CIRBP40SCHSA is a Circular Connector manufactured by TE Connectivity AMP Connectors (TE-AMP). Backshell Adpt, Size 40, 2 5/16-16.
Packaging: Factory Bulk · industry-standard protective packaging.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
