| Manufacturer Product Number | KMAH1-15-1-C-S1-HE |
| Manufacturer | TE Connectivity AMP Connectors |
| NavitasChip Part Number | NAVI-13985140 |
| Description | CONN BACKSHELL SZ15 SILVER M22 |
| Spec | - |
| Package | Box |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Backshells and Cable Clamps |
| Manufacturer | TE Connectivity AMP Connectors |
| Package | Box |
| Product Status | Active |
| Type | Backshell |
| Cable Opening | 0.642" ~ 0.894" (16.30mm ~ 22.70mm) |
| Diameter - Outside | 1.142" (29.00mm) |
| Shell Size - Insert | 15 |
| Thread Size | M22x1 |
| Cable Exit | 180° |
| Material | Aluminum Alloy |
| Plating | Electroless Nickel |
| Shielding | Shielded |
| Color | Silver |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | TE Connectivity AMP Connectors KMAH1-15-1-C-S1-HE Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description

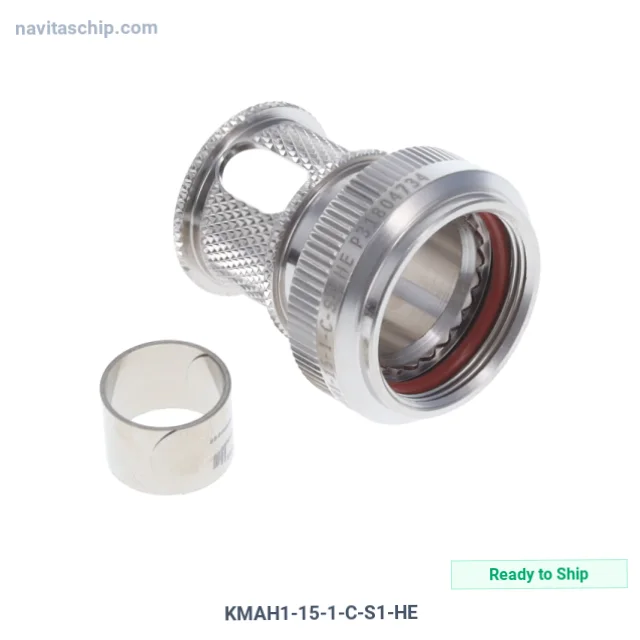

The KMAH1-15-1-C-S1-HE is a Circular Connector manufactured by TE Connectivity AMP Connectors (TE-AMP). Connector Backshell Sz15 Silver Plated M22. Extended temperature range version (-40°C to +85°C).
