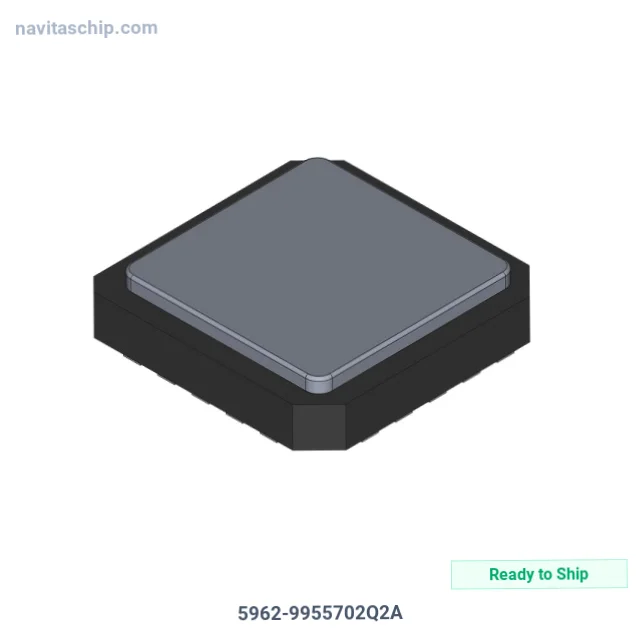

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | 5962-9955702Q2A |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-13513502 |
| Description | TLC5618AM 12-BIT, 2.5 US DUAL DA |
| Spec | 20-CLCC |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Texas Instruments |
| Package | Bulk |
| Product Status | Active |
| Number of Bits | 12 |
| Number of D/A Converters | 2 |
| Settling Time | 12.5µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | 3-Wire Serial, DSP, Microwire, QSPI, SPI |
| Reference Type | External |
| Voltage - Supply, Analog | 4.5V ~ 5.5V |
| Voltage - Supply, Digital | 4.5V ~ 5.5V |
| INL/DNL (LSB) | ±4 (Max), ±0.5 |
| Architecture | String DAC |
| Operating Temperature | -55°C ~ 125°C |
| Supplier Device Package | 20-LCCC (8.89x8.89) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments 5962-9955702Q2A Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The 5962-9955702Q2A is a Digital-to-Analog Converter (DAC) manufactured by Texas Instruments (TI). Tlc5618am 12-Bit, housed in a compact 20-LCCC (8.89x8.89) package.
Key Technical Specifications
- Output Type: Voltage - Buffered
- Operating Temperature: -55°C ~ 125°C
- Mounting: Surface Mount
- Package: 20-CLCC
- Device Package: 20-LCCC (8.89x8.89)
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
