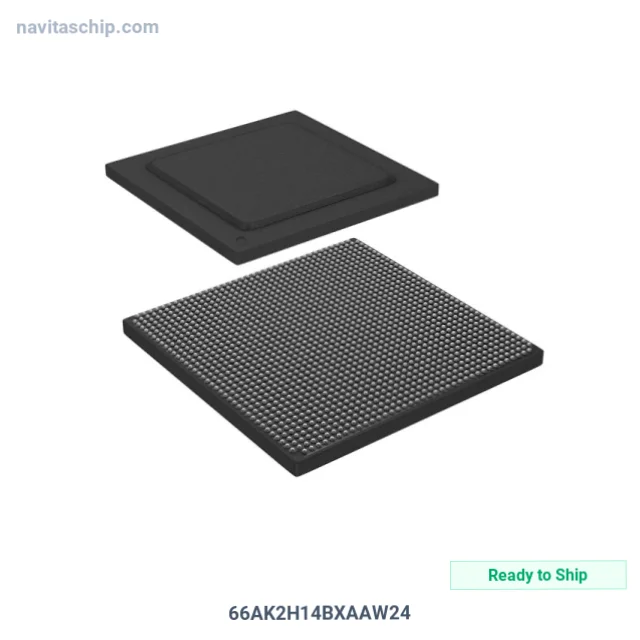

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | 66AK2H14BXAAW24 |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-5452219 |
| Description | IC DSP ARM SOC 1517FCBGA |
| Spec | 1517-BBGA, FCBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Texas Instruments |
| Package | Tray |
| Product Status | Discontinued at |
| Type | DSP+ARM® |
| Interface | EBI/EMI, Ethernet, DMA, I2C, Serial RapidIO, SPI, UART/USART, USB 3.0 |
| Clock Rate | 1.2GHz DSP, 1.4GHz ARM® |
| Non-Volatile Memory | ROM (384kB) |
| On-Chip RAM | 12.75MB |
| Voltage - I/O | 0.85V, 1.0V, 1.35V, 1.5V, 1.8V, 3.3V |
| Voltage - Core | Variable |
| Operating Temperature | -40°C ~ 100°C (TC) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1517-FCBGA (40x40) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments 66AK2H14BXAAW24 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The 66AK2H14BXAAW24 is a Digital Signal Processor (DSP) manufactured by Texas Instruments (TI). Integrated Circuit Digital Signal Processor Arm System On Chip in 1517-Pin BGA Package, housed in a compact 1517-FCBGA (40x40) package.
Key Technical Specifications
- Interface: EBI/EMI, Ethernet, DMA, I2C, Serial RapidIO, SPI, UART/USART, USB 3.0
- Operating Temperature: -40°C ~ 100°C (TC)
- Mounting: Surface Mount
- Package: 1517-BBGA, FCBGA
- Device Package: 1517-FCBGA (40x40)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
