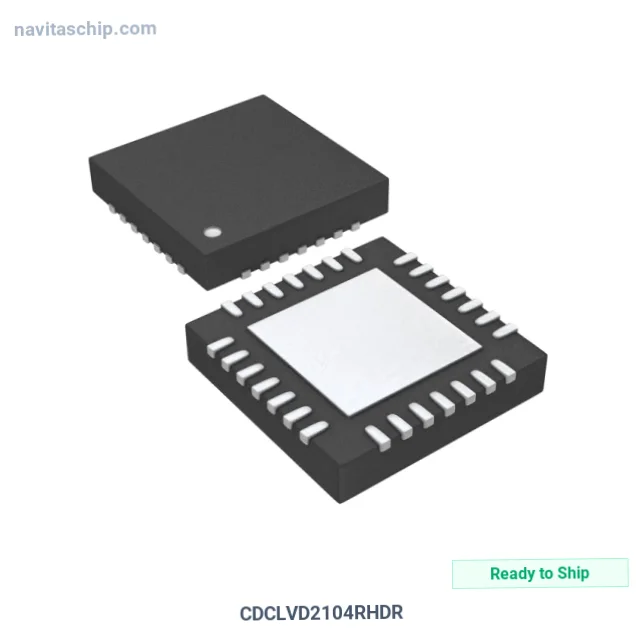

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | CDCLVD2104RHDR |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-2596805 |
| Description | IC CLK BUFFER 1:4 800MHZ 28VQFN |
| Spec | 28-VFQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Fanout Buffer (Distribution) |
| Number of Circuits | 2 |
| Ratio - Input | 1:4 |
| Differential - Input | Yes/Yes |
| Input | LVCMOS, LVDS, LVPECL |
| Output | LVDS |
| Frequency - Max | 800 MHz |
| Voltage - Supply | 2.375V ~ 2.625V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-VQFN (5x5) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments CDCLVD2104RHDR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The CDCLVD2104RHDR is a Clock Buffer and Driver IC manufactured by Texas Instruments (TI). Integrated Circuit Clock Buffer 1:4 operating at 800MHz 28vqfn, housed in a compact 28-VQFN (5x5) package, with 2.375V ~ 2.625V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.375V ~ 2.625V
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 28-VFQFN Exposed Pad
- Device Package: 28-VQFN (5x5)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
