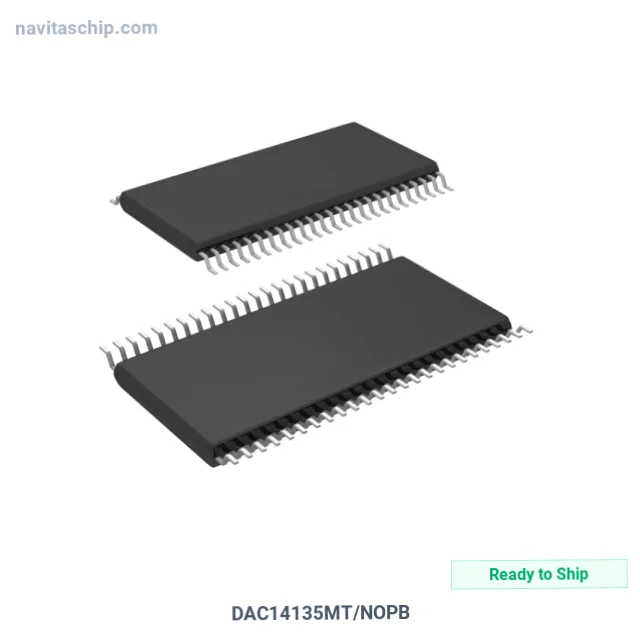

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | DAC14135MT/NOPB |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-366504 |
| Description | IC DAC 14BIT A-OUT 48TSSOP |
| Spec | 48-TFSOP (0.240", 6.10mm Width) |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Texas Instruments |
| Package | Tube |
| Product Status | Obsolete |
| Number of Bits | 14 |
| Number of D/A Converters | 1 |
| Settling Time | 30ns (Typ) |
| Output Type | Current - Unbuffered |
| Differential Output | Yes |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 3V ~ 3.6V, 5V |
| Architecture | Segmented DAC |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 48-TSSOP |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments DAC14135MT/NOPB Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The DAC14135MT/NOPB is a Digital-to-Analog Converter (DAC) manufactured by Texas Instruments (TI). Integrated Circuit Digital-To-Analog Converter 14bit A-Out in 48-Pin TSSOP Package, housed in a compact 48-TSSOP package.
Key Technical Specifications
- Output Type: Current - Unbuffered
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 48-TFSOP (0.240", 6.10mm Width)
- Device Package: 48-TSSOP
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
