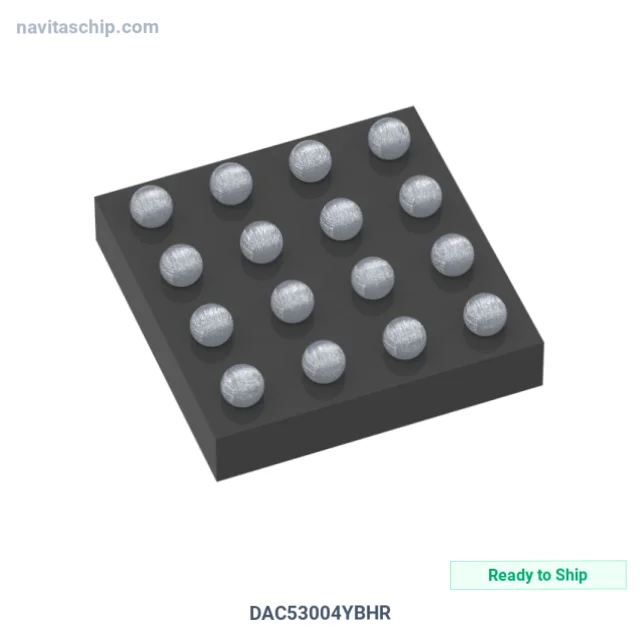

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | DAC53004YBHR |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-21298785 |
| Description | 10-BIT 4-CHANNEL LOW-POWER VOUT |
| Spec | 16-XFBGA, DSBGA |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Number of Bits | 10 |
| Number of D/A Converters | 4 |
| Settling Time | 25µs (V), 60µs (A) |
| Output Type | Voltage or Current - Buffered |
| Differential Output | No |
| Data Interface | I2C, SPI |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 1.71V ~ 5.5V |
| Voltage - Supply, Digital | 1.7V ~ 5.5V |
| INL/DNL (LSB) | ±1, ±1 |
| Architecture | String DAC |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Supplier Device Package | 16-DSBGA (1.62x1.62) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments DAC53004YBHR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The DAC53004YBHR is a Digital-to-Analog Converter (DAC) manufactured by Texas Instruments (TI). 10-Bit 4-Channel Low-Power Vout, housed in a compact 16-DSBGA (1.62x1.62) package.
In today's market, discontinued multi-channel DAC series requiring drop-in pin-compatible replacements can affect many manufacturers. NavitasChip offers dependable alternatives.
Key Technical Specifications
- Output Type: Voltage or Current - Buffered
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 16-XFBGA, DSBGA
- Device Package: 16-DSBGA (1.62x1.62)
- RoHS Compliant
Applications
Essential component for:
- R-2R ladder and segmented DAC architectures for monotonic output
- serial interface DAC with SPI, I2C and microwire protocols
- low glitch energy and fast settling time for closed-loop control
Why Choose NavitasChip for DAC53004YBHR?
NavitasChip offers specialized sourcing for end-of-life and obsolete components for the DAC53004YBHR and thousands of other electronic components.
- Availability: In Inventory
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
We offer express global shipping for DAC53004YBHR, serving customers in Norway, Finland, and worldwide.
DAC53004YBHR - Get instant quote online.
