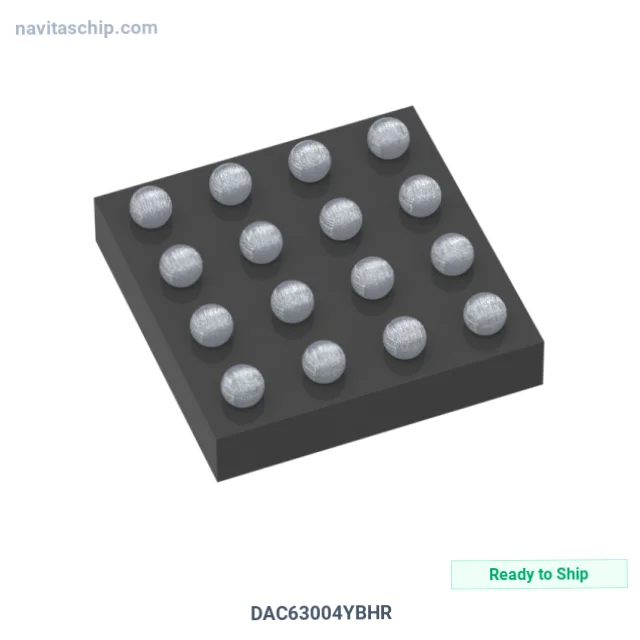

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | DAC63004YBHR |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-21298438 |
| Description | ULTRA-LOW-POWER FOUR-CHANNEL |
| Spec | 16-XFBGA, DSBGA |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Number of Bits | 12 |
| Number of D/A Converters | 4 |
| Settling Time | 25µs (Typ) |
| Output Type | Voltage or Current - Buffered |
| Differential Output | No |
| Data Interface | I2C, SPI |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 1.71V ~ 5.5V |
| Voltage - Supply, Digital | 1.62V ~ 5.5V |
| INL/DNL (LSB) | ±5, ±1 (Max) |
| Architecture | String DAC |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Supplier Device Package | 16-DSBGA (1.62x1.62) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments DAC63004YBHR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The DAC63004YBHR is a Digital-to-Analog Converter (DAC) manufactured by Texas Instruments (TI). Ultra-Low-Power Four-Channel, housed in a compact 16-DSBGA (1.62x1.62) package.
In today's market, minimum order quantity requirements can affect many manufacturers. NavitasChip offers dependable alternatives.
Key Technical Specifications
- Output Type: Voltage or Current - Buffered
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting: Surface Mount
- Package: 16-XFBGA, DSBGA
- Device Package: 16-DSBGA (1.62x1.62)
- RoHS Compliant
Applications
Designed for:
- consumer electronics
- professional equipment
- voltage-output DAC with integrated buffer for direct load driving
Why Choose NavitasChip for DAC63004YBHR?
NavitasChip offers cost-saving procurement for the DAC63004YBHR and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Need DAC63004YBHR urgently? We maintain buffer stock across multiple global locations.
DAC63004YBHR - Contact our sales team.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
