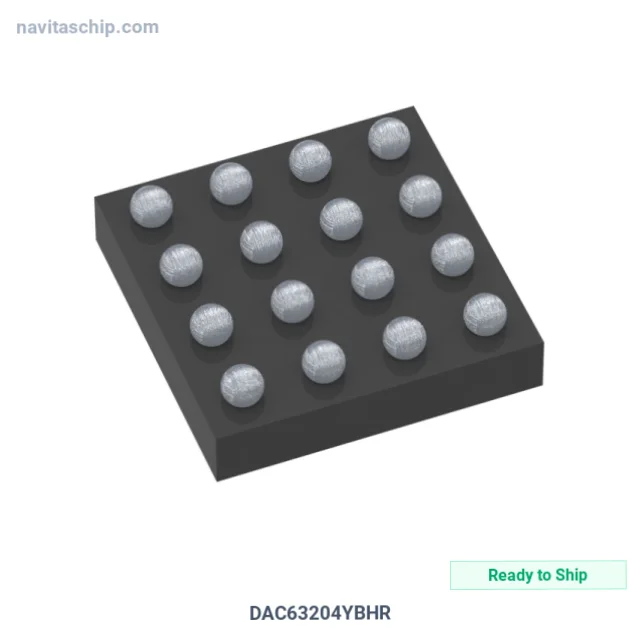

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | DAC63204YBHR |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-21298482 |
| Description | 12-BIT 4-CHANNEL VOLTAGE/CURRENT |
| Spec | 16-XFBGA, DSBGA |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Number of Bits | 12 |
| Number of D/A Converters | 4 |
| Settling Time | 25µs (Typ) |
| Output Type | Voltage or Current - Buffered |
| Differential Output | No |
| Data Interface | I2C, SPI |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 1.71V ~ 5.5V |
| Voltage - Supply, Digital | 1.71V ~ 5.5V |
| INL/DNL (LSB) | ±5, ±1 (Max) |
| Architecture | String DAC |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 16-DSBGA (1.62x1.62) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments DAC63204YBHR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The DAC63204YBHR is a Digital-to-Analog Converter (DAC) manufactured by Texas Instruments (TI). 12-Bit 4-Channel Voltage/current, housed in a compact 16-DSBGA (1.62x1.62) package.
Struggling with DAC EOL and obsolescence disrupting precision instrumentation production? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Output Type: Voltage or Current - Buffered
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 16-XFBGA, DSBGA
- Device Package: 16-DSBGA (1.62x1.62)
- RoHS Compliant
