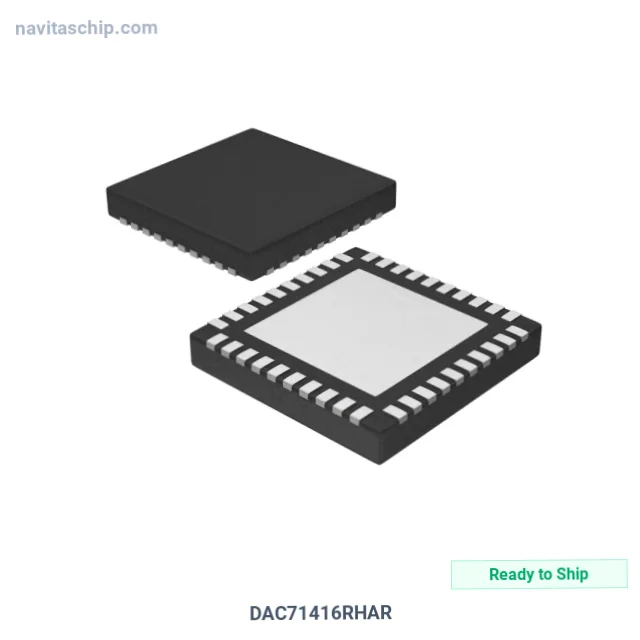

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | DAC71416RHAR |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-10448307 |
| Description | DIGITAL TO ANALOG CONVERTER |
| Spec | 40-VFQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Number of Bits | 14 |
| Number of D/A Converters | 16 |
| Settling Time | 12µs (Typ) |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI, DSP |
| Reference Type | Internal |
| Voltage - Supply, Analog | 4.5V ~ 5.5V |
| Voltage - Supply, Digital | 4.5V ~ 5.5V |
| INL/DNL (LSB) | ±0.5, ±0.5 |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 125°C |
| Supplier Device Package | 40-VQFN (6x6) |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments DAC71416RHAR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The DAC71416RHAR is a Digital-to-Analog Converter (DAC) manufactured by Texas Instruments (TI). Digital to Analog Converter, housed in a compact 40-VQFN (6x6) package.
Don't let component shortages slow down your production. We maintain ready stock for critical components.
Key Technical Specifications
- Output Type: Voltage - Buffered
- Operating Temperature: -40°C ~ 125°C
- Mounting: Surface Mount
- Package: 40-VFQFN Exposed Pad
- Device Package: 40-VQFN (6x6)
- RoHS Compliant
Applications
Perfect for:
- parallel interface DAC for high-speed waveform generation
- low glitch energy and fast settling time for closed-loop control
- professional audio equipment and high-fidelity sound systems
Why Choose NavitasChip for DAC71416RHAR?
NavitasChip offers obsolete part procurement when authorized distributors discontinue support for the DAC71416RHAR and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
As an independent distributor, we offer DAC71416RHAR with flexible routing options.
DAC71416RHAR - Request a quote today.
