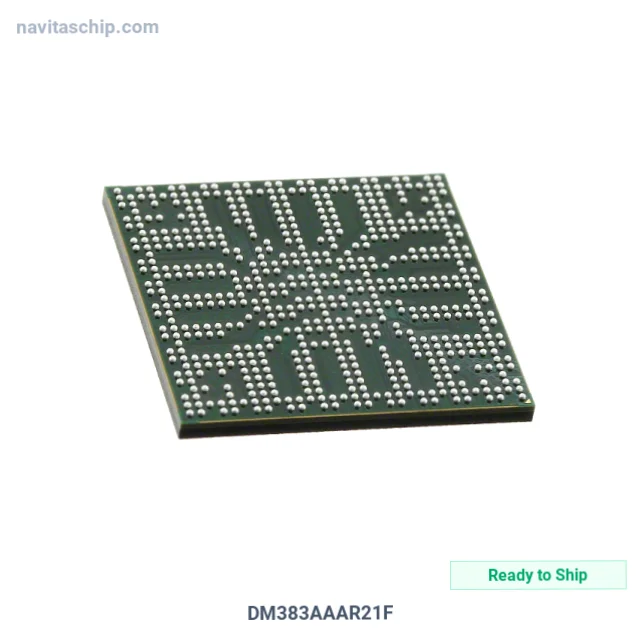

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | DM383AAAR21F |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-5005087 |
| Description | IC DGTL MEDIA PROCESSOR 609FCBGA |
| Spec | 609-LFBGA, FCBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Texas Instruments |
| Package | Tray |
| Product Status | Obsolete |
| Type | Digital Media System-on-Chip (DMSoC) |
| Interface | CAN, I2C, McASP, MMC/SD/SDIO, SATA, SPI, UART, USB |
| Clock Rate | 1GHz |
| Non-Volatile Memory | ROM (48kB) |
| On-Chip RAM | 640kB |
| Voltage - I/O | 1.35V, 1.5V, 1.8V, 3.3V |
| Voltage - Core | 1.1V, 1.2V, 1.35V |
| Operating Temperature | 0°C ~ 95°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 609-FCBGA (16x16) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments DM383AAAR21F Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The DM383AAAR21F is a Digital Signal Processor (DSP) manufactured by Texas Instruments (TI). Integrated Circuit Dgtl Media Processor in 609-Pin BGA Package, housed in a compact 609-FCBGA (16x16) package.
Key Technical Specifications
- Interface: CAN, I2C, McASP, MMC/SD/SDIO, SATA, SPI, UART, USB
- Operating Temperature: 0°C ~ 95°C (TJ)
- Mounting: Surface Mount
- Package: 609-LFBGA, FCBGA
- Device Package: 609-FCBGA (16x16)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
