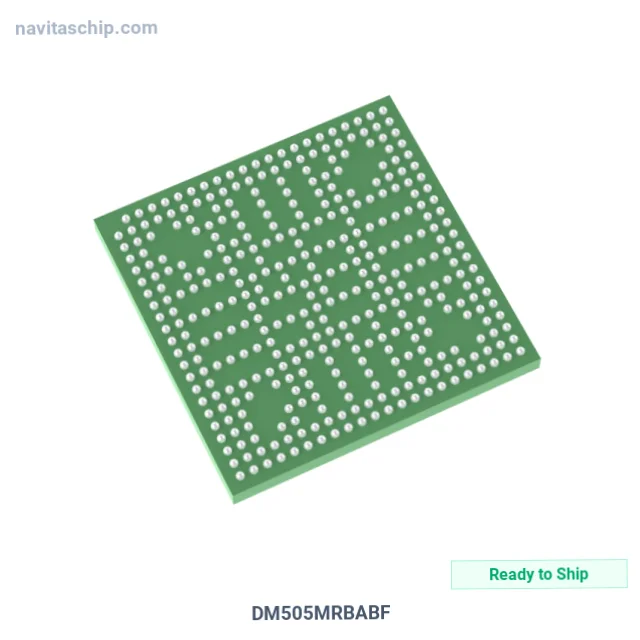

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | DM505MRBABF |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-8105862 |
| Description | DM505MRBABF |
| Spec | 367-BFBGA, FCBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Texas Instruments |
| Package | Tray |
| Product Status | Active |
| Type | Floating Point |
| Interface | CAN, I2C, SPI, UART |
| Clock Rate | 745MHz |
| Non-Volatile Memory | ROM (32kB) |
| On-Chip RAM | 512kB |
| Voltage - I/O | 1.8V, 3.3V |
| Voltage - Core | 1.50V |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Supplier Device Package | 367-FCBGA (15x15) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments DM505MRBABF Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The DM505MRBABF is a Digital Signal Processor (DSP) manufactured by Texas Instruments (TI). Dm505mrbabf, housed in a compact 367-FCBGA (15x15) package.
Key Technical Specifications
- Interface: CAN, I2C, SPI, UART
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting: Surface Mount
- Package: 367-BFBGA, FCBGA
- Device Package: 367-FCBGA (15x15)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
