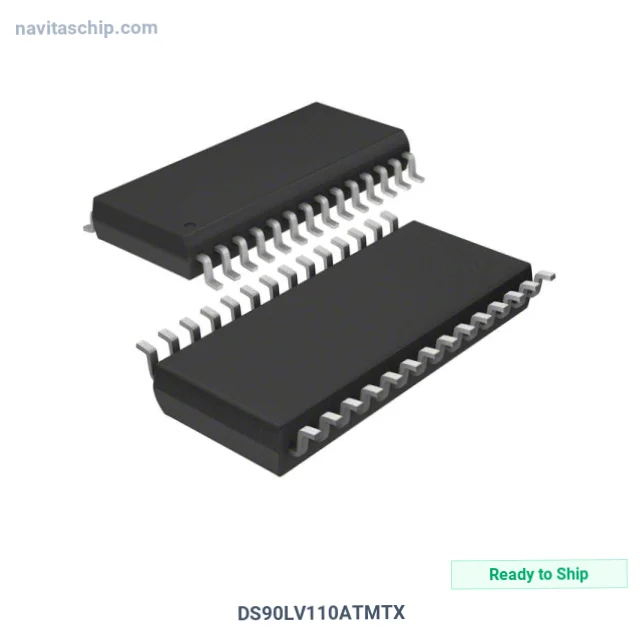

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | DS90LV110ATMTX |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-3696109 |
| Description | IC CLK BUF 1:10 200MHZ 28TSSOP |
| Spec | 28-TSSOP (0.173", 4.40mm Width) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Type | Fanout Buffer (Distribution) |
| Number of Circuits | 1 |
| Ratio - Input | 1:10 |
| Differential - Input | Yes/Yes |
| Input | LVDS, LVPECL, PECL |
| Output | LVDS |
| Frequency - Max | 200 MHz |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-TSSOP |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments DS90LV110ATMTX Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The DS90LV110ATMTX is a Clock Buffer and Driver IC manufactured by Texas Instruments (TI). Integrated Circuit Clock Buffer 1:10 operating at 200MHz in 28-Pin TSSOP Package, housed in a compact 28-TSSOP package, with 3V ~ 3.6V supply voltage. Originally developed by Maxim Integrated.
Key Technical Specifications
- Supply Voltage: 3V ~ 3.6V
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 28-TSSOP (0.173", 4.40mm Width)
- Device Package: 28-TSSOP
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
