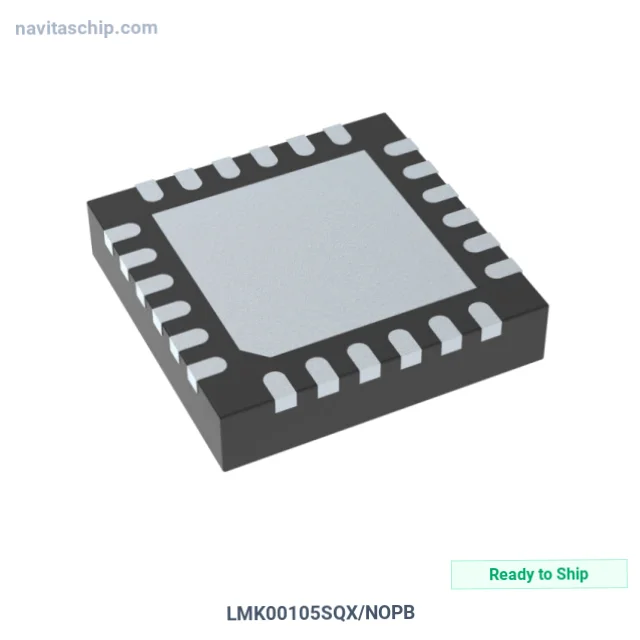

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LMK00105SQX/NOPB |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-3640553 |
| Description | IC CLK BUFFER 2:5 200MHZ 24WQFN |
| Spec | 24-WFQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Fanout Buffer (Distribution), Multiplexer, Translator |
| Number of Circuits | 1 |
| Ratio - Input | 2:5 |
| Differential - Input | Yes/No |
| Input | HCSL, LVCMOS, LVDS, LVPECL, LVTTL, SSTL, Crystal |
| Output | LVCMOS |
| Frequency - Max | 200 MHz |
| Voltage - Supply | 2.375V ~ 3.45V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 24-WQFN (4x4) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments LMK00105SQX/NOPB Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LMK00105SQX/NOPB is a Clock Buffer and Driver IC manufactured by Texas Instruments (TI). Integrated Circuit Clock Buffer 2:5 operating at 200MHz 24wqfn, housed in a compact 24-WQFN (4x4) package, with 2.375V ~ 3.45V supply voltage.
Key Technical Specifications
- Supply Voltage: 2.375V ~ 3.45V
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 24-WFQFN Exposed Pad
- Device Package: 24-WQFN (4x4)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
