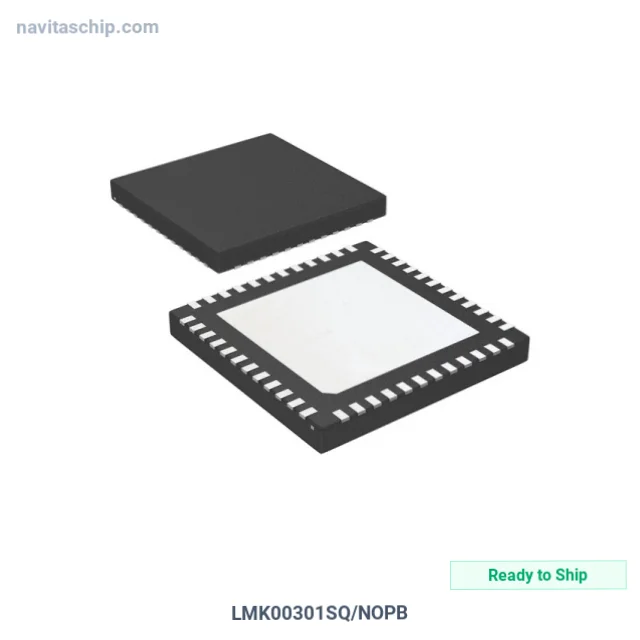

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LMK00301SQ/NOPB |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-3179219 |
| Description | IC CLK BUFFER 3:11 3.1GHZ 48WQFN |
| Spec | 48-WFQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Fanout Buffer (Distribution), Multiplexer, Translator |
| Number of Circuits | 1 |
| Ratio - Input | 3:11 |
| Differential - Input | Yes/Yes |
| Input | CML, HCSL, HSTL, LVDS, LVPECL, SSTL, Crystal |
| Output | HCSL, LVCMOS, LVDS, LVPECL |
| Frequency - Max | 3.1 GHz |
| Voltage - Supply | 3.15V ~ 3.45V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 48-WQFN (7x7) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments LMK00301SQ/NOPB Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LMK00301SQ/NOPB is a Clock Buffer and Driver IC manufactured by Texas Instruments (TI). Integrated Circuit Clock Buffer 3:11 operating at 3.1GHz 48wqfn, housed in a compact 48-WQFN (7x7) package, with 3.15V ~ 3.45V supply voltage.
Key Technical Specifications
- Supply Voltage: 3.15V ~ 3.45V
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 48-WFQFN Exposed Pad
- Device Package: 48-WQFN (7x7)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
