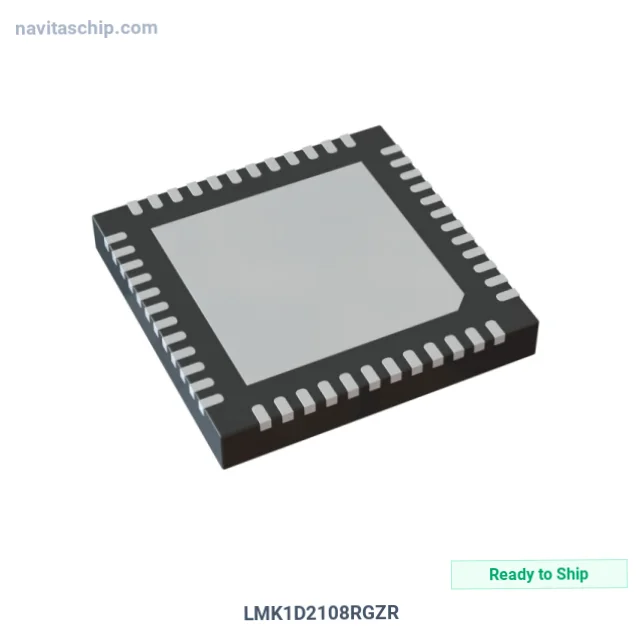

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LMK1D2108RGZR |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-15856696 |
| Description | IC CLK BUFFER 2:8 2GHZ 48VQFN |
| Spec | 48-VFQFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Clock Buffer |
| Number of Circuits | 2 |
| Ratio - Input | 2:8 |
| Differential - Input | Yes/Yes |
| Input | CML, HCSL, LVCMOS, LVDS, LVPECL |
| Output | Clock, LVDS |
| Frequency - Max | 2 GHz |
| Voltage - Supply | 1.71V ~ 1.89V, 2.375V ~ 2.625V, 3.135V ~ 3.465V |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 48-VQFN (7x7) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments LMK1D2108RGZR Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LMK1D2108RGZR is a Clock Buffer and Driver IC manufactured by Texas Instruments (TI). Integrated Circuit Clock Buffer 2:8 operating at 2GHz 48vqfn, housed in a compact 48-VQFN (7x7) package, with 1.71V ~ 1.89V, 2.375V ~ 2.625V, 3.135V ~ 3.465V supply voltage.
Key Technical Specifications
- Supply Voltage: 1.71V ~ 1.89V, 2.375V ~ 2.625V, 3.135V ~ 3.465V
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting: Surface Mount
- Package: 48-VFQFN Exposed Pad
- Device Package: 48-VQFN (7x7)
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
