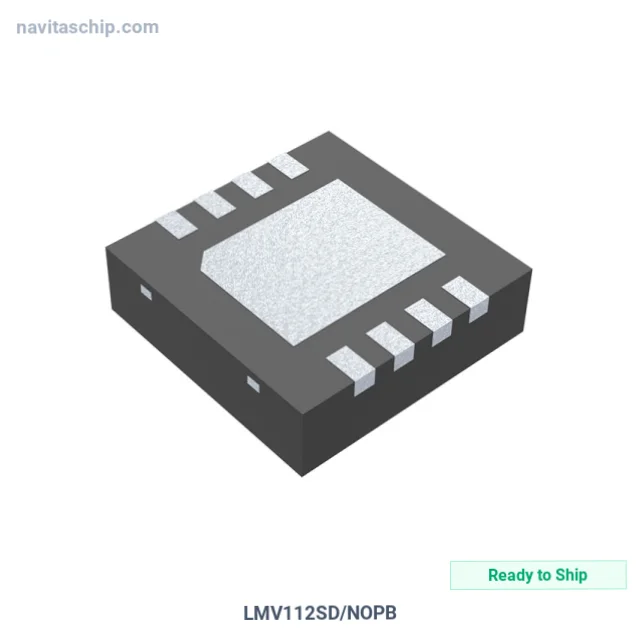

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | LMV112SD/NOPB |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-807972 |
| Description | IC CLK BUFFER 1:1 40MHZ 8WSON |
| Spec | 8-WFDFN Exposed Pad |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Clock Buffers, Drivers |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Buffer/Driver |
| Number of Circuits | 2 |
| Ratio - Input | 1:1 |
| Differential - Input | No/No |
| Input | Clock |
| Output | Clock |
| Frequency - Max | 40 MHz |
| Voltage - Supply | 2.4V ~ 5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-WSON (3x3) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments LMV112SD/NOPB Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The LMV112SD/NOPB is a Clock Buffer and Driver IC manufactured by Texas Instruments (TI). Integrated Circuit Clock Buffer 1:1 operating at 40MHz in 8-Pin WSON Package, housed in a compact 8-WSON (3x3) package, with 2.4V ~ 5V supply voltage. Originally developed by National Semiconductor.
Key Technical Specifications
- Supply Voltage: 2.4V ~ 5V
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 8-WFDFN Exposed Pad
- Device Package: 8-WSON (3x3)
- RoHS Compliant
Packaging: factory Tape & Reel (TR) or Cut Tape · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
