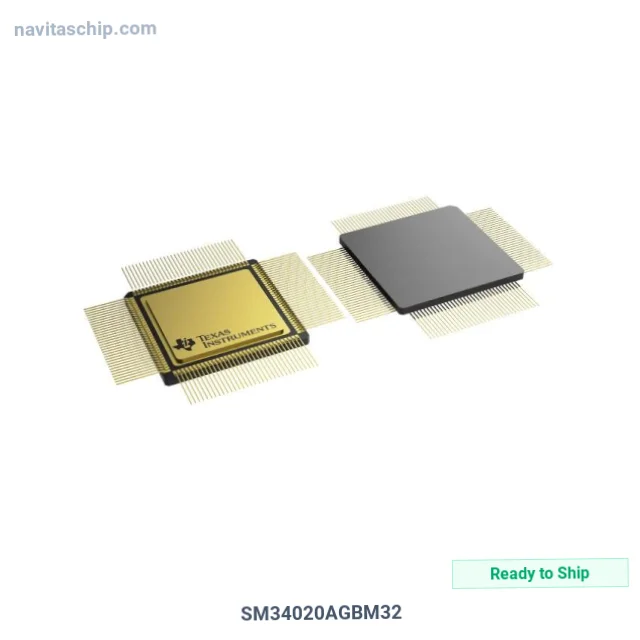

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | SM34020AGBM32 |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-18178410 |
| Description | GRAPHICS SYSTEM PROCESSOR 145-CP |
| Spec | 145-BCPGA |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Texas Instruments |
| Package | Tube |
| Product Status | Active |
| Type | Graphics Processor |
| Interface | Host Interface, Multi-Processor |
| Clock Rate | 32MHz |
| On-Chip RAM | 1MB |
| Voltage - I/O | 5V |
| Operating Temperature | -55°C ~ 125°C (TC) |
| Mounting Type | Through Hole |
| Supplier Device Package | 145-CPGA (39.75x39.75) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments SM34020AGBM32 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The SM34020AGBM32 is a Digital Signal Processor (DSP) manufactured by Texas Instruments (TI). Graphics System Processor 145-Cp, housed in a compact 145-CPGA (39.75x39.75) package.
Key Technical Specifications
- Interface: Host Interface, Multi-Processor
- Operating Temperature: -55°C ~ 125°C (TC)
- Mounting: Through Hole
- Package: 145-BCPGA
- Device Package: 145-CPGA (39.75x39.75)
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
