| Manufacturer Product Number | TLV5638IDRG4 |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-1669810 |
| Description | IC DAC 12BIT V-OUT 8SOIC |
| Spec | 8-SOIC (0.154", 3.90mm Width) |
| Package | Tape & Reel (TR) |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Texas Instruments |
| Package | Tape & Reel (TR) |
| Product Status | Discontinued at |
| Number of Bits | 12 |
| Number of D/A Converters | 2 |
| Settling Time | 7µs |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 3.3V, 5V |
| Voltage - Supply, Digital | 2.7V ~ 3.3V, 5V |
| INL/DNL (LSB) | ±1.7, ±0.4 |
| Architecture | String DAC |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 8-SOIC |
| Mounting Type | Surface Mount |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments TLV5638IDRG4 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description

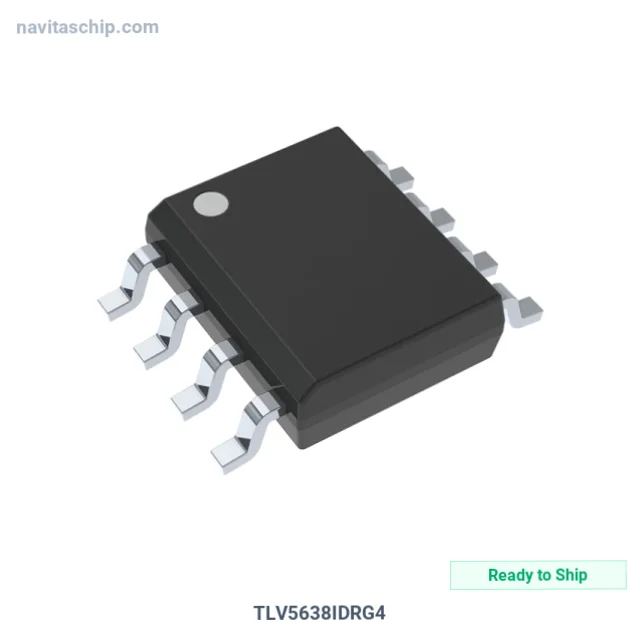

The TLV5638IDRG4 is a Digital-to-Analog Converter (DAC) manufactured by Texas Instruments (TI). Integrated Circuit Digital-To-Analog Converter 12bit V-Out in 8-Pin SOIC Package, housed in a compact 8-SOIC package.
Struggling with long factory lead times exceeding 40-50 weeks on high-resolution DAC? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Output Type: Voltage - Buffered
- Operating Temperature: -40°C ~ 85°C
- Mounting: Surface Mount
- Package: 8-SOIC (0.154", 3.90mm Width)
- Device Package: 8-SOIC
- RoHS Compliant
Applications
Perfect for:
- industrial automation
- R-2R ladder and segmented DAC architectures for monotonic output
- multi-channel DAC (dual / quad / octal) for parallel analog control
- parallel interface DAC for high-speed waveform generation
- test and measurement instrumentation and bench equipment
Why Choose NavitasChip for TLV5638IDRG4?
NavitasChip offers cost-saving procurement for the TLV5638IDRG4 and thousands of other electronic components.
- Availability: Immediate Dispatch Available
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
Fast TLV5638IDRG4 delivery to Mainland China and Dongguan via DHL, FedEx, and UPS.
TLV5638IDRG4 - Request a quote today.
