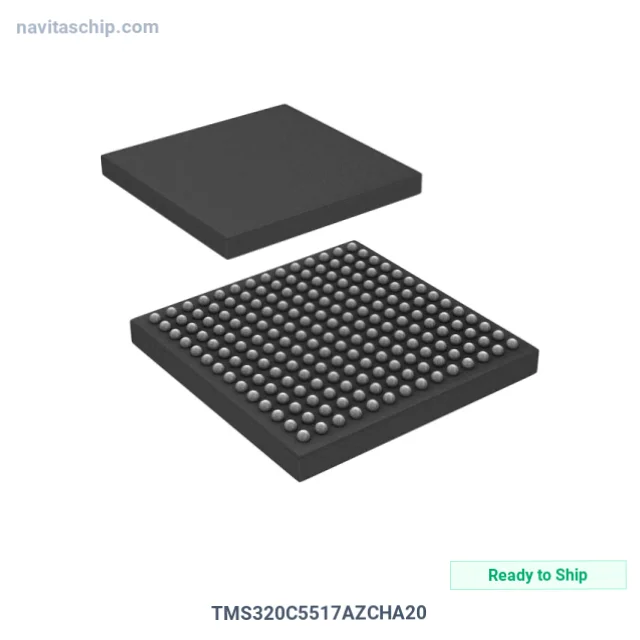

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TMS320C5517AZCHA20 |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-4457724 |
| Description | IC DSP FIXED-POINT 196NFBGA |
| Spec | 196-LFBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Texas Instruments |
| Package | Tray |
| Product Status | Active |
| Type | Fixed Point |
| Interface | EBI/EMI, I2C, I2S, McBSP, McSPI, MMC/SD, SPI, UART/USART, UHPI, USB |
| Clock Rate | 200MHz |
| Non-Volatile Memory | ROM (128kB) |
| On-Chip RAM | 320kB |
| Voltage - I/O | 1.8V, 2.75V, 3.3V |
| Voltage - Core | 1.05V, 1.3V, 1.4V |
| Operating Temperature | -40°C ~ 85°C (TC) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 196-NFBGA (10x10) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments TMS320C5517AZCHA20 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TMS320C5517AZCHA20 is a Digital Signal Processor (DSP) manufactured by Texas Instruments (TI). Integrated Circuit Digital Signal Processor Fixed-Point in 196-Pin BGA Package, housed in a compact 196-NFBGA (10x10) package.
Key Technical Specifications
- Interface: EBI/EMI, I2C, I2S, McBSP, McSPI, MMC/SD, SPI, UART/USART, UHPI, USB
- Operating Temperature: -40°C ~ 85°C (TC)
- Mounting: Surface Mount
- Package: 196-LFBGA
- Device Package: 196-NFBGA (10x10)
- RoHS Compliant
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
