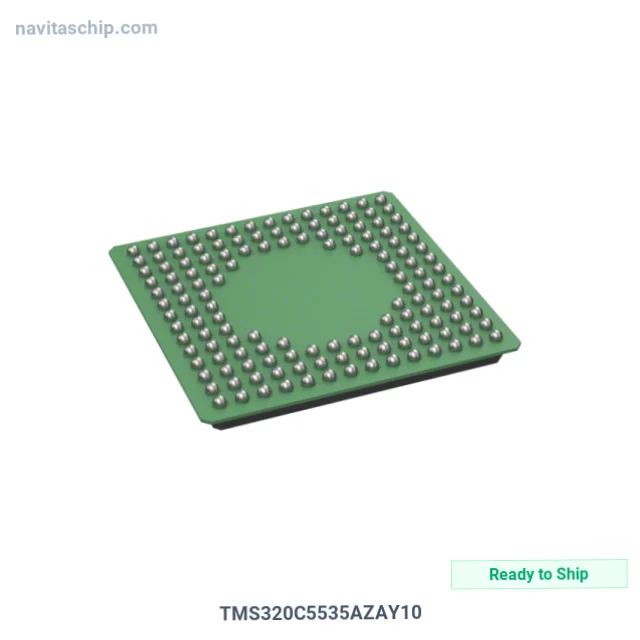

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TMS320C5535AZAY10 |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-12809148 |
| Description | IC DSP FIXED-POINT 144BGA |
| Spec | 144-LFBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Texas Instruments |
| Package | Tray |
| Product Status | Active |
| Type | Fixed Point |
| Interface | I2C, I2S, LCD, MMC/SD, SPI, UART, USB |
| Clock Rate | 100MHz |
| Non-Volatile Memory | ROM (128kB) |
| On-Chip RAM | 320kB |
| Voltage - I/O | 1.8V, 2.5V, 2.75V, 3.3V |
| Voltage - Core | 1.30V |
| Operating Temperature | -10°C ~ 70°C (TC) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-NFBGA (12x12) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments TMS320C5535AZAY10 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TMS320C5535AZAY10 is a Digital Signal Processor (DSP) manufactured by Texas Instruments (TI). Integrated Circuit Digital Signal Processor Fixed-Point in 144-Pin BGA Package, housed in a compact 144-NFBGA (12x12) package.
Facing excess inventory tying up working capital? NavitasChip provides agile sourcing solutions to keep your production running.
Key Technical Specifications
- Interface: I2C, I2S, LCD, MMC/SD, SPI, UART, USB
- Operating Temperature: -10°C ~ 70°C (TC)
- Mounting: Surface Mount
- Package: 144-LFBGA
- Device Package: 144-NFBGA (12x12)
- RoHS Compliant
Applications
Widely adopted for:
- IoT devices
- digital audio effects, mixing and equalization
- industrial automation and machine control
- image and video processing
- instrumentation and test equipment
Why Choose NavitasChip for TMS320C5535AZAY10?
NavitasChip offers global surplus sourcing network for the TMS320C5535AZAY10 and thousands of other electronic components.
- Availability: In Inventory
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
TMS320C5535AZAY10 available for international procurement with multiple shipping origin options.
TMS320C5535AZAY10 - Contact our sales team.
