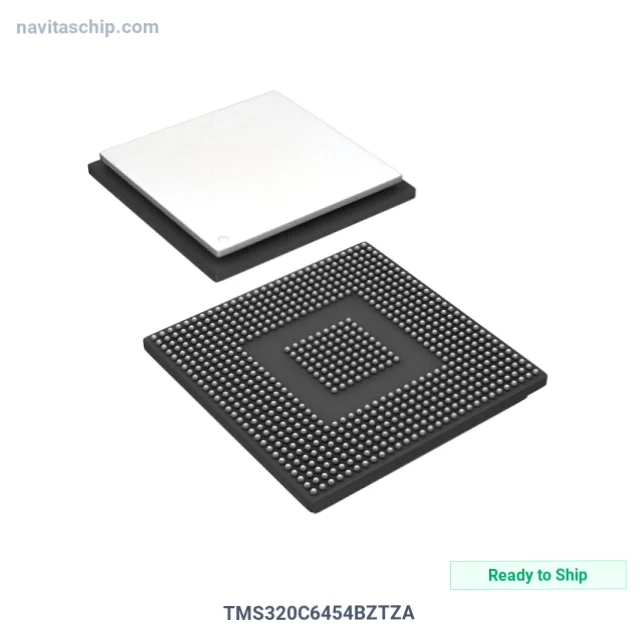

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TMS320C6454BZTZA |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-1907205 |
| Description | IC FIXED-POINT DSP 697-FCBGA |
| Spec | 697-BFBGA, FCBGA |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Texas Instruments |
| Package | Tube |
| Product Status | Obsolete |
| Type | Fixed Point |
| Interface | Host Interface, I2C, McBSP, PCI, 10/100/1000 Ethernet MAC |
| Clock Rate | 1GHz |
| Non-Volatile Memory | ROM (32kB) |
| On-Chip RAM | 1.08MB |
| Voltage - I/O | 1.2V, 1.5V, 1.8V, 3.3V |
| Voltage - Core | 1.25V |
| Operating Temperature | -40°C ~ 105°C (TC) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 697-FCBGA (24x24) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments TMS320C6454BZTZA Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TMS320C6454BZTZA is a Digital Signal Processor (DSP) manufactured by Texas Instruments (TI). Integrated Circuit Fixed-Point Digital Signal Processor in 697-Pin BGA Package, housed in a compact 697-FCBGA (24x24) package.
Key Technical Specifications
- Interface: Host Interface, I2C, McBSP, PCI, 10/100/1000 Ethernet MAC
- Operating Temperature: -40°C ~ 105°C (TC)
- Mounting: Surface Mount
- Package: 697-BFBGA, FCBGA
- Device Package: 697-FCBGA (24x24)
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
