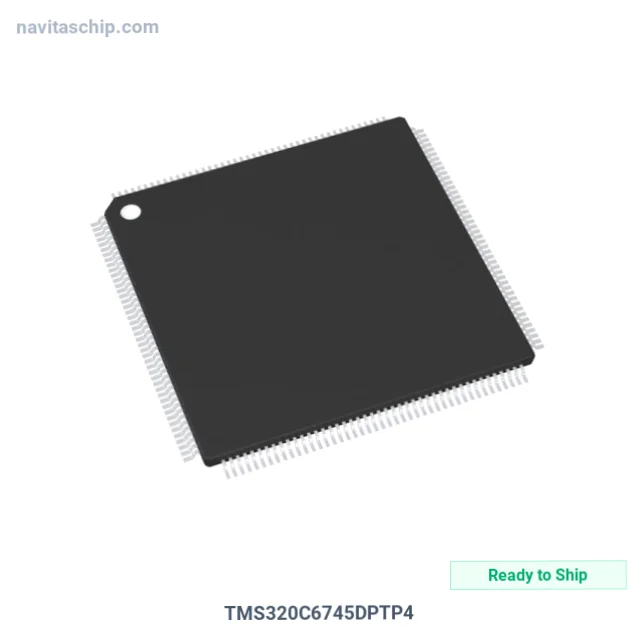

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TMS320C6745DPTP4 |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-4091045 |
| Description | IC DSP FIX/FLOAT POINT 176HLQFP |
| Spec | 176-LQFP Exposed Pad |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Texas Instruments |
| Package | Tube |
| Product Status | Active |
| Type | Fixed/Floating Point |
| Interface | EBI/EMI, Ethernet MAC, I2C, McASP, SPI, UART, USB |
| Clock Rate | 456MHz |
| Non-Volatile Memory | External |
| On-Chip RAM | 320kB |
| Voltage - I/O | 3.30V |
| Voltage - Core | 1.20V |
| Operating Temperature | 0°C ~ 90°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 176-HLQFP (24x24) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments TMS320C6745DPTP4 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TMS320C6745DPTP4 is a Digital Signal Processor (DSP) manufactured by Texas Instruments (TI). Integrated Circuit Digital Signal Processor Fix/float Point 176hlqfp, housed in a compact 176-HLQFP (24x24) package.
Key Technical Specifications
- Interface: EBI/EMI, Ethernet MAC, I2C, McASP, SPI, UART, USB
- Operating Temperature: 0°C ~ 90°C (TJ)
- Mounting: Surface Mount
- Package: 176-LQFP Exposed Pad
- Device Package: 176-HLQFP (24x24)
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
