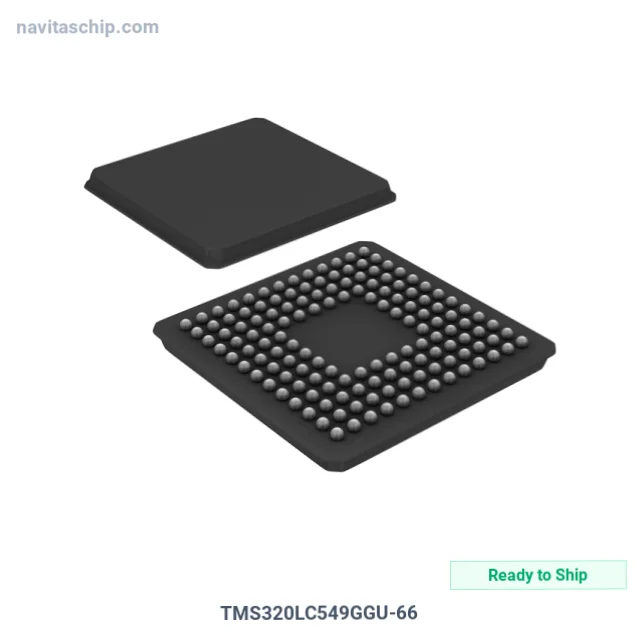

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TMS320LC549GGU-66 |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-1670216 |
| Description | IC FIXED POINT DSP 144-BGA |
| Spec | 144-LFBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Texas Instruments |
| Package | Tray |
| Product Status | Obsolete |
| Type | Fixed Point |
| Interface | BSP, Host Interface |
| Clock Rate | 66MHz |
| Non-Volatile Memory | ROM (32kB) |
| On-Chip RAM | 64kB |
| Voltage - I/O | 3.30V |
| Voltage - Core | 3.30V |
| Operating Temperature | -40°C ~ 100°C (TC) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-BGA MICROSTAR (12x12) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments TMS320LC549GGU-66 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TMS320LC549GGU-66 is a Digital Signal Processor (DSP) manufactured by Texas Instruments (TI). Integrated Circuit Fixed Point Digital Signal Processor in 144-Pin BGA Package, housed in a compact 144-BGA MICROSTAR (12x12) package.
Key Technical Specifications
- Interface: BSP, Host Interface
- Operating Temperature: -40°C ~ 100°C (TC)
- Mounting: Surface Mount
- Package: 144-LFBGA
- Device Package: 144-BGA MICROSTAR (12x12)
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
