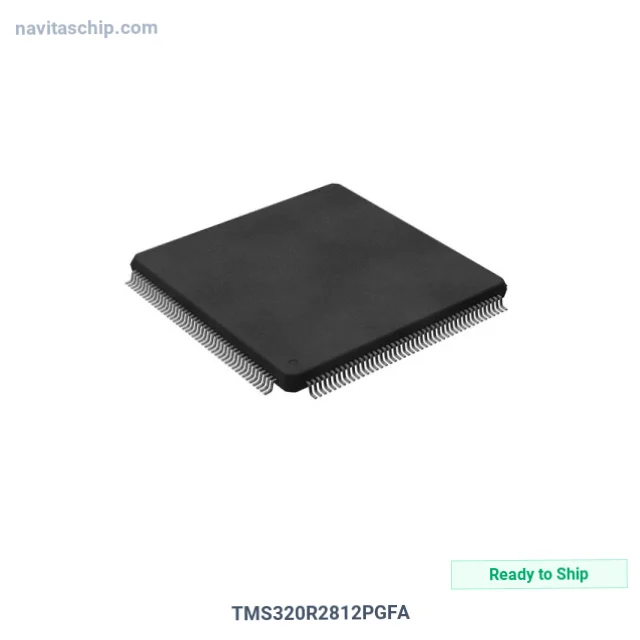

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TMS320R2812PGFA |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-863742 |
| Description | IC MCU 32BIT ROMLESS 176LQFP |
| Spec | 176-LQFP |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Texas Instruments |
| Package | Tray |
| Product Status | Obsolete |
| Core Processor | C28x |
| Core Size | 32-Bit |
| Speed | 150MHz |
| Connectivity | CANbus, EBI/EMI, I2C, McBSP, SCI, SPI, UART/USART |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 56 |
| Program Memory Type | ROMless |
| RAM Size | 20K x 16 |
| Voltage - Supply (Vcc/Vdd) | 1.81V ~ 2V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 176-LQFP (24x24) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments TMS320R2812PGFA Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TMS320R2812PGFA is a Microcontroller (MCU) manufactured by Texas Instruments (TI). Integrated Circuit Microcontroller 32bit Romless in 176-Pin LQFP Package, housed in a compact 176-LQFP (24x24) package.
In today's market, MCU allocation crisis can affect many manufacturers. NavitasChip offers dependable alternatives.
Key Technical Specifications
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting: Surface Mount
- Package: 176-LQFP
- Device Package: 176-LQFP (24x24)
- RoHS Compliant
Applications
Widely adopted for:
- embedded systems
- consumer electronics
- professional equipment
- industrial control
Why Choose NavitasChip for TMS320R2812PGFA?
NavitasChip offers cost-effective alternative to authorized distributors for the TMS320R2812PGFA and thousands of other electronic components.
- Availability: Ready to Ship
- Packaging: Available in factory Tray or Partial Tray. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
As an independent distributor, we offer TMS320R2812PGFA with flexible routing options.
TMS320R2812PGFA - Inquire for bulk discount.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
