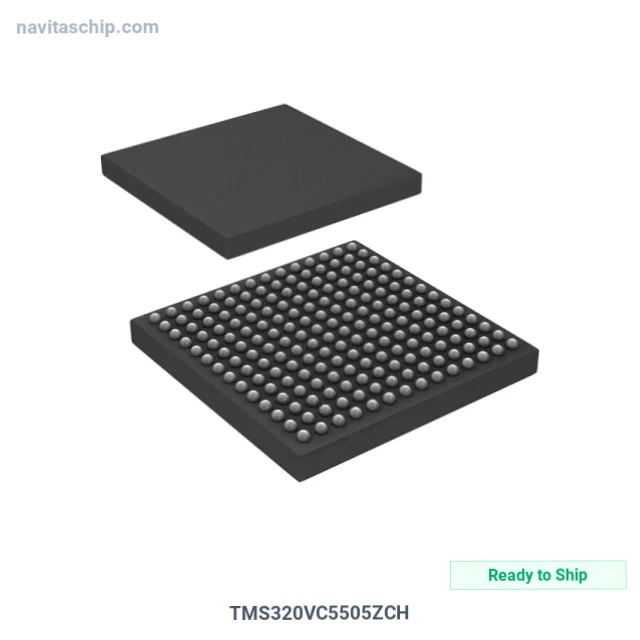

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TMS320VC5505ZCH |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-2232715 |
| Description | IC DSP FIXED POINT 196NFBGA |
| Spec | 196-LFBGA |
| Package | Bulk |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Texas Instruments |
| Package | Bulk |
| Product Status | Not For New Designs |
| Type | Fixed Point |
| Interface | I2C, I2S, SPI, UART, USB |
| Clock Rate | 100MHz |
| Non-Volatile Memory | ROM (128kB) |
| On-Chip RAM | 320kB |
| Voltage - I/O | 1.8V, 2.5V, 2.8V, 3.3V |
| Voltage - Core | 1.30V |
| Operating Temperature | 0°C ~ 70°C (TC) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 196-NFBGA (10x10) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments TMS320VC5505ZCH Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TMS320VC5505ZCH is a Digital Signal Processor (DSP) manufactured by Texas Instruments (TI). Integrated Circuit Digital Signal Processor Fixed Point in 196-Pin BGA Package, housed in a compact 196-NFBGA (10x10) package.
Key Technical Specifications
- Interface: I2C, I2S, SPI, UART, USB
- Operating Temperature: 0°C ~ 70°C (TC)
- Mounting: Surface Mount
- Package: 196-LFBGA
- Device Package: 196-NFBGA (10x10)
- RoHS Compliant
Packaging: factory Bulk or Custom Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
