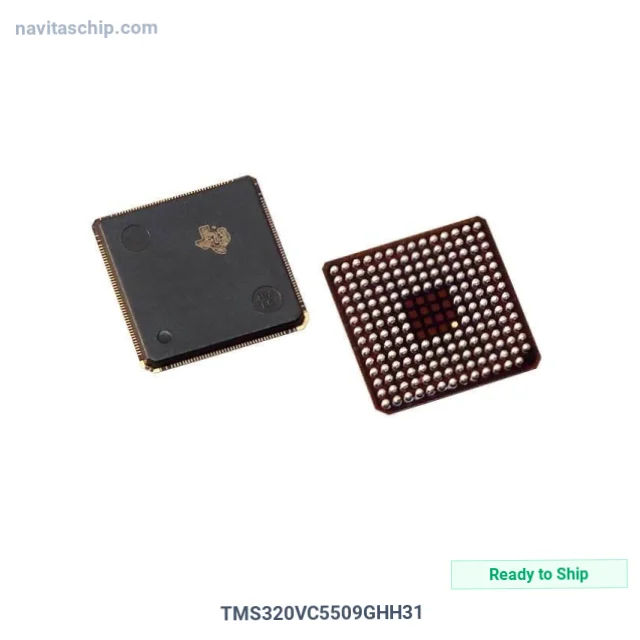

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TMS320VC5509GHH31 |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-550697 |
| Description | IC DSP FIX PT 16-BIT 179-BGA |
| Spec | 179-LFBGA |
| Package | Tube |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Texas Instruments |
| Package | Tube |
| Product Status | Obsolete |
| Type | Fixed Point |
| Interface | Host Interface, I2C, McBSP |
| Clock Rate | 144MHz |
| Non-Volatile Memory | ROM (64kB) |
| On-Chip RAM | 256kB |
| Voltage - I/O | 3.00V, 3.30V |
| Voltage - Core | 1.60V |
| Operating Temperature | -40°C ~ 85°C (TC) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 179-BGA MicroStar (12x12) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments TMS320VC5509GHH31 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TMS320VC5509GHH31 is a Digital Signal Processor (DSP) manufactured by Texas Instruments (TI). Integrated Circuit Digital Signal Processor Fix Pt 16-Bit in 179-Pin BGA Package, housed in a compact 179-BGA MicroStar (12x12) package.
Key Technical Specifications
- Interface: Host Interface, I2C, McBSP
- Operating Temperature: -40°C ~ 85°C (TC)
- Mounting: Surface Mount
- Package: 179-LFBGA
- Device Package: 179-BGA MicroStar (12x12)
- RoHS Compliant
Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
