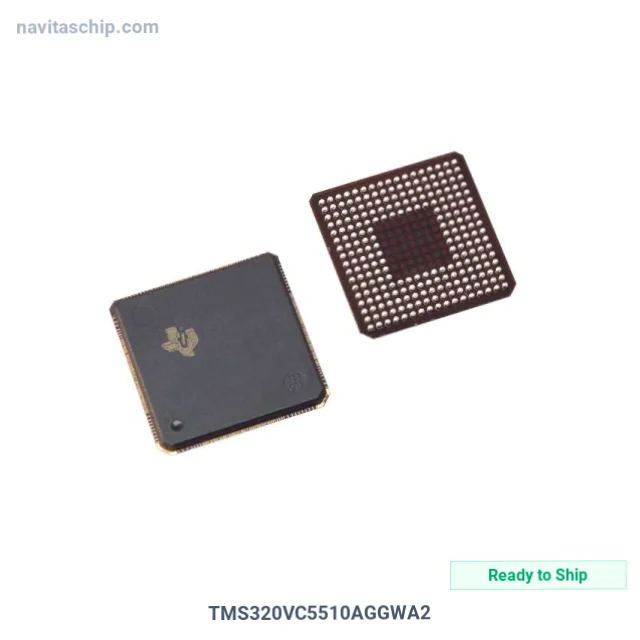

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TMS320VC5510AGGWA2 |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-1670277 |
| Description | IC FIXED POINT DSP 240-BGA |
| Spec | 240-LFBGA |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | DSP (Digital Signal Processors) |
| Manufacturer | Texas Instruments |
| Package | Tray |
| Product Status | Obsolete |
| Type | Fixed Point |
| Interface | Host Interface, McBSP |
| Clock Rate | 200MHz |
| Non-Volatile Memory | ROM (32kB) |
| On-Chip RAM | 344kB |
| Voltage - I/O | 3.30V |
| Voltage - Core | 1.60V |
| Operating Temperature | -40°C ~ 85°C (TC) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 240-BGA MICROSTAR (15x15) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments TMS320VC5510AGGWA2 Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TMS320VC5510AGGWA2 is a Digital Signal Processor (DSP) manufactured by Texas Instruments (TI). Integrated Circuit Fixed Point Digital Signal Processor in 240-Pin BGA Package, housed in a compact 240-BGA MICROSTAR (15x15) package.
Key Technical Specifications
- Interface: Host Interface, McBSP
- Operating Temperature: -40°C ~ 85°C (TC)
- Mounting: Surface Mount
- Package: 240-LFBGA
- Device Package: 240-BGA MICROSTAR (15x15)
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
