TMS370C756AFNT Texas Instruments

IC MCU 8BIT 16KB OTP 68PLCC

In stock: 1,293 pcs · Price on request (RFQ)

In Stock RoHS
TMS370C756AFNT

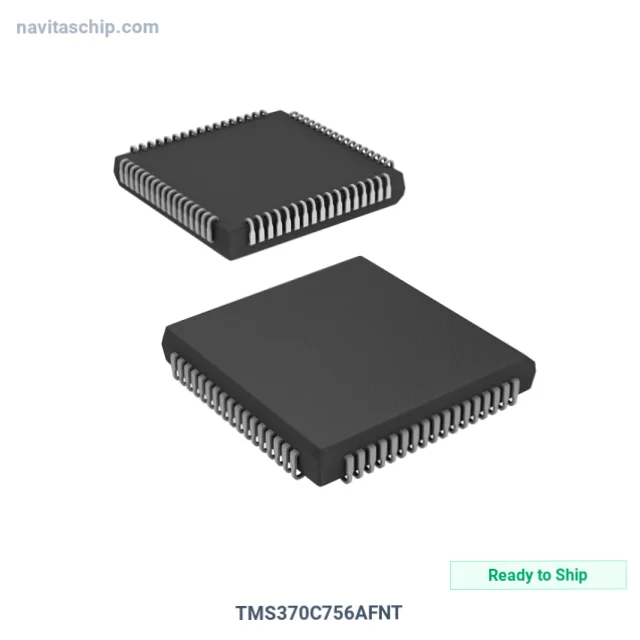

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.

Manufacturer Product Number TMS370C756AFNT
Manufacturer Texas Instruments
NavitasChip Part Number N96118702
Description IC MCU 8BIT 16KB OTP 68PLCC
Spec 68-LCC (J-Lead)
Package Tube
Datasheet Datasheet

Product Attributes

Type Description
Category Microcontrollers
Manufacturer Texas Instruments
Package Tube
Product Status Discontinued at
Core Processor TMS370
Core Size 8-Bit
Speed 5MHz
Connectivity SCI, SPI
Peripherals PWM, WDT
Number of I/O 46
Program Memory Size 16KB (16K x 8)
Program Memory Type OTP
EEPROM Size 512 x 8
RAM Size 512 x 8
Voltage - Supply (Vcc/Vdd) 4.5V ~ 5.5V
Data Converters A/D 8x8b
Oscillator Type Internal
Operating Temperature -40°C ~ 105°C (TA)
Mounting Type Surface Mount
Supplier Device Package 68-PLCC (24.23x24.23)
Part Status Active

Documents & Media

Resource Type Link
Datasheet Texas Instruments TMS370C756AFNT Datasheet
Product Image View Large Image

Environmental Compliance

Attribute Description
RoHS Status
REACH Status REACH Unaffected

Product Description

The TMS370C756AFNT is a Microcontroller (MCU) manufactured by Texas Instruments (TI). Integrated Circuit Microcontroller 8bit 16kb Overtemperature Protection 68plcc, housed in a compact 68-PLCC (24.23x24.23) package.

Key Technical Specifications

  • Operating Temperature: -40°C ~ 105°C (TA)
  • Mounting: Surface Mount
  • Package: 68-LCC (J-Lead)
  • Device Package: 68-PLCC (24.23x24.23)

Packaging: factory Tube or Custom Tube Quantity · ESD-shielded, vacuum-sealed MBB to MSL standards.

Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.

Spot Buy Note

Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.

Ordering variants of TMS370C756AFNT

Same device in different packaging or grades (temperature, speed, accuracy).

Same listed specs from other manufacturers

Listed specs match; pinout and features can differ — check the datasheet before substituting.
