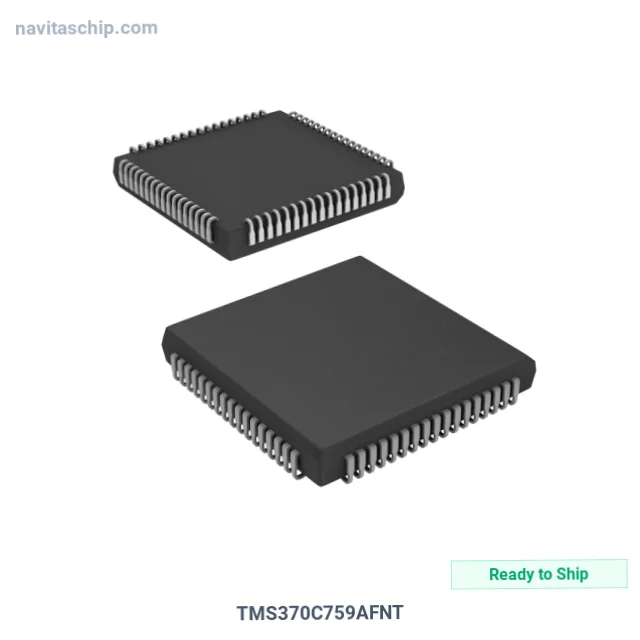

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
| Manufacturer Product Number | TMS370C759AFNT |
| Manufacturer | Texas Instruments |
| NavitasChip Part Number | NAVI-1670320 |
| Description | IC MCU 8BIT 48KB OTP 68PLCC |
| Spec | 68-LCC (J-Lead) |
| Package | Tray |
| Datasheet | Datasheet |
Product Attributes
| Type | Description |
|---|---|
| Category | Microcontrollers |
| Manufacturer | Texas Instruments |
| Package | Tray |
| Product Status | Obsolete |
| Core Processor | TMS370 |
| Core Size | 8-Bit |
| Speed | 5MHz |
| Connectivity | SCI, SPI |
| Peripherals | PWM, WDT |
| Number of I/O | 46 |
| Program Memory Size | 48KB (48K x 8) |
| Program Memory Type | OTP |
| EEPROM Size | 256 x 8 |
| RAM Size | 3.5K x 8 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Data Converters | A/D 8x8b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 68-PLCC (24.23x24.23) |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|
| Datasheet | Texas Instruments TMS370C759AFNT Datasheet |
| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TMS370C759AFNT is a Microcontroller (MCU) manufactured by Texas Instruments (TI). Integrated Circuit Microcontroller 8bit 48kb Overtemperature Protection 68plcc, housed in a compact 68-PLCC (24.23x24.23) package.
Key Technical Specifications
- Operating Temperature: -40°C ~ 105°C (TA)
- Mounting: Surface Mount
- Package: 68-LCC (J-Lead)
- Device Package: 68-PLCC (24.23x24.23)
Packaging: factory Tray or Partial Tray · ESD-shielded, vacuum-sealed MBB to MSL standards.
Fulfillment: MPN and Date Code verified on inbound · datasheet and compliance documents available · RFQ answered within 24 hours.
Disclaimer: NavitasChip is an independent distributor of electronic components. We are not affiliated with, endorsed by, or an authorized distributor for the manufacturers listed on this page. All trademarks and brand names are the property of their respective owners and are used solely for identification purposes.
Stock quantities are dynamic and updated in real-time. For large quantity orders (1,000+ units), please contact us for real-time stock verification and custom pricing.
