| Manufacturer Product Number | TLP548J(TP1,F) |
| Manufacturer | Toshiba Semiconductor and Storage |
| NavitasChip Part Number | NAVI-7325709 |
| Description | OPTOISOLATOR 2.5KV SCR 1CH 6-SMD |
| Spec | 6-SMD, Gull Wing |
| Package | Tape & Reel (TR) |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Category | Triac, SCR Output Optoisolators |
| Manufacturer | Toshiba Semiconductor and Storage |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Output Type | SCR |
| Zero Crossing Circuit | No |
| Number of Channels | 1 |
| Voltage - Isolation | 2500Vrms |
| Voltage - Off State | 600 V |
| Static dV/dt (Min) | 5V/µs |
| Current - LED Trigger (Ift) (Max) | 7mA |
| Current - On State (It (RMS)) (Max) | 150 mA |
| Current - Hold (Ih) | 1mA |
| Turn On Time | 10µs |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Current - DC Forward (If) (Max) | 50 mA |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-SMD |
| Approval Agency | UR |
| Part Status | Active |
Documents & Media
| Resource Type | Link |
|---|---|

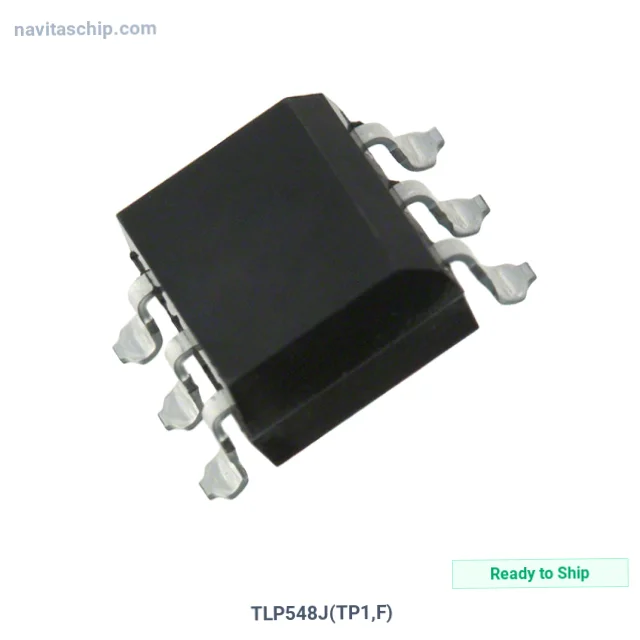

| Product Image | View Large Image |
Environmental & Export Classifications
| Attribute | Description |
|---|---|
| RoHS Status | RoHS Compliant |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
Product Description
The TLP548J(TP1,F) is an Optocoupler manufactured by Toshiba Semiconductor and Storage (Toshiba). Optocoupler Isolator 2.5kV Scr 1ch 6-Surface Mount, housed in a compact 6-SMD package.
Struggling with EOL (End of Life) notices? Our global sourcing network ensures reliable supply for your projects.
Key Technical Specifications
- Output Type: SCR
- Channels: 1
- Operating Temperature: -25°C ~ 85°C
- Mounting: Surface Mount
- Package: 6-SMD, Gull Wing
- Device Package: 6-SMD
- RoHS Compliant
Applications
Critical part of:
- industrial fieldbus
- solar inverters
- signal isolation
- safety isolation
Why Choose NavitasChip for TLP548J(TP1,F)?
NavitasChip offers wholesale pricing advantages for the TLP548J(TP1,F) and thousands of other electronic components.
- Availability: Immediate Dispatch Available
- Packaging: Available in factory Tape & Reel (TR) or Cut Tape. All custom quantities are professionally repackaged with ESD Shielding and Vacuum-Sealed MBB (Moisture Barrier Bags) in strict adherence to MSL standards.
- Fast Shipping: Ships from Shenzhen / Hong Kong / Singapore via DHL/FedEx/UPS
- Quality Assurance: Inbound check with MPN and Date Code review
- Technical Support: Datasheet and compliance documentation available
Global Shipping
TLP548J(TP1,F) available for international procurement with multiple shipping origin options.
TLP548J(TP1,F) - Check our competitive price now.
